LAMILUX Glass Skylight FE Passivhaus

The world’s first passivhaus certified skylight


Benefits at a glance

Glass Skylight FE Passivhaus


Certified energy efficiency

  • First skylight certified to Passivhaus standard
  • Highest Passivhaus efficiency class – phA advanced component
  • Heat transmission coefficient (USL): 0.84 W/(m²K)
  • Overall system with flawless isothermal characteristics and free of thermal bridges
  • Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2
  • Outstanding air-tightness due to a balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
  • Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight FE Passivhaus in accordance with ISO 14025 and EN 15804 (EPD – modules A1 - D)

Comfort

  • Pleasant indoor climate due to natural ventilation and sun protection
  • Adjustable sun protection on the inside or outside
  • High sound insulation
  • Convenient remote control for ventilation and sun protection systems
  • Daylight element and upstand are fully pre-assembled at the factory and locked – they can thus be retrofitted with an opener system at any time

Design

  • Discreet appearance from inside and outside
  • Wide variety of colours based on RAL system (surrounding profile)

Safety

  • Best possible comfort and hygiene properties according to DIN 4108-2 on the glazing’s interior as well as the frame and cross-bar profiles
  • Permanent fall-through-proof
  • Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

Accessories

Glass Skylight FE Passivhaus


Sun protection

Concealed chain drive opener

Glare protection

  • Inside glare protection, electrically powered
  • Fastened onto the inside surface of the upstand

Wireless remote control

  • Allows convenient operation of sun protection system and ventilation motor

Insect protection

  • Integrated into the upstand

Range of RAL colours

  • Colour coating according to RAL colours

Technical details

LAMILUX Glass Skylight FE Passivhaus


Comfort and technology

The intelligent use of highly efficient materials limits the minimum surface temperature on the inside of the glass roof construction, thus preventing condensate and mould formation.

Mould grows on surfaces at a relative humidity of just 80 percent or higher. When the indoor temperature is 20° C and humidity is 50 per cent (standard conditions), this corresponds to a surface temperature of 12.6 °C.

This data is used to calculate the fRsi value. A coefficient which indicates the likelihood of mould growth. If this value is less than 0.7, there is a risk of mould forming.

The value is stable on the level 0.73 for the Glass Skylight FE Passivhaus. This corresponds to a minimum surface temperature of 13.3 °C, which is an ideal temperature to ensure comfort and save energy.

Available sizes

LAMILUX Glass Skylight FE Passivhaus




Top roof edge size

in cm

80/80

90/90

90/120

100/100

100/150

100/200

120/120

150/150

180/180

Glare protectionOOOOOOOOO
Sun protectionOOOOOOOO

Not
available

Insect protectionOOOOOOOOO

Concealed chain drive

SSSSSSSSS

Concealed cable routing

SSSSSSSSS
Concealed reed contactOOOOOOOOO
Lockable ventilationOOOOOOOOO
SHEV staircase setOOOOOOOOO
Range of RAL coloursSSSSSSSSS
Mounting loopSSSSSSSSS
Dark flap sandwich panelsOOOOOOOOO
Upstand 0° incline, 40 cmSSSSSSSSS
Upstand 0° incline, 50 cmOOOOOOOOO

O - Option, S - Serie

LAMILUX Glass Skylight FE Passivhaus+

Certified skylight for “cold” climate zones


The LAMILUX Glass Skylight FE Passivhaus+ is the world's first skylight suitable for Passivhaus buildings in Scandinavia and many regions of Austria, Switzerland and Eastern Europe. As a further development to our LAMILUX Glass Skylight FE Passivhaus, it meets the criteria for the cold climate zone and has been awarded the highest Passivhaus classification, phA.

Construction Details

Passivhaus certification in double pack

Downloads

LAMILUX Glass Skylight FE Passivhaus


Glass Skylight FE Passivhaus

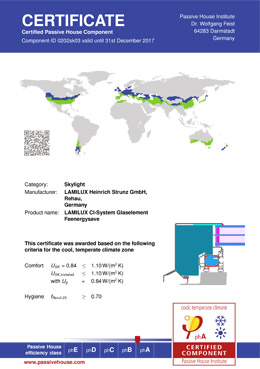

Passivhaus certificate
