Shopping mall Thier-Galerie, Dortmund

CI system glass architecture PR60


Essential info

Place / country:Waldershof, Germany
Year:2011
Building type:

Shopping mall

Solutions:Glass Roof KWS60
CI control technology
Pneumatic lift openers
thermal insulation glazing
Efficiency:Uw=1.1 W/(m²K) according to DIN EN 673

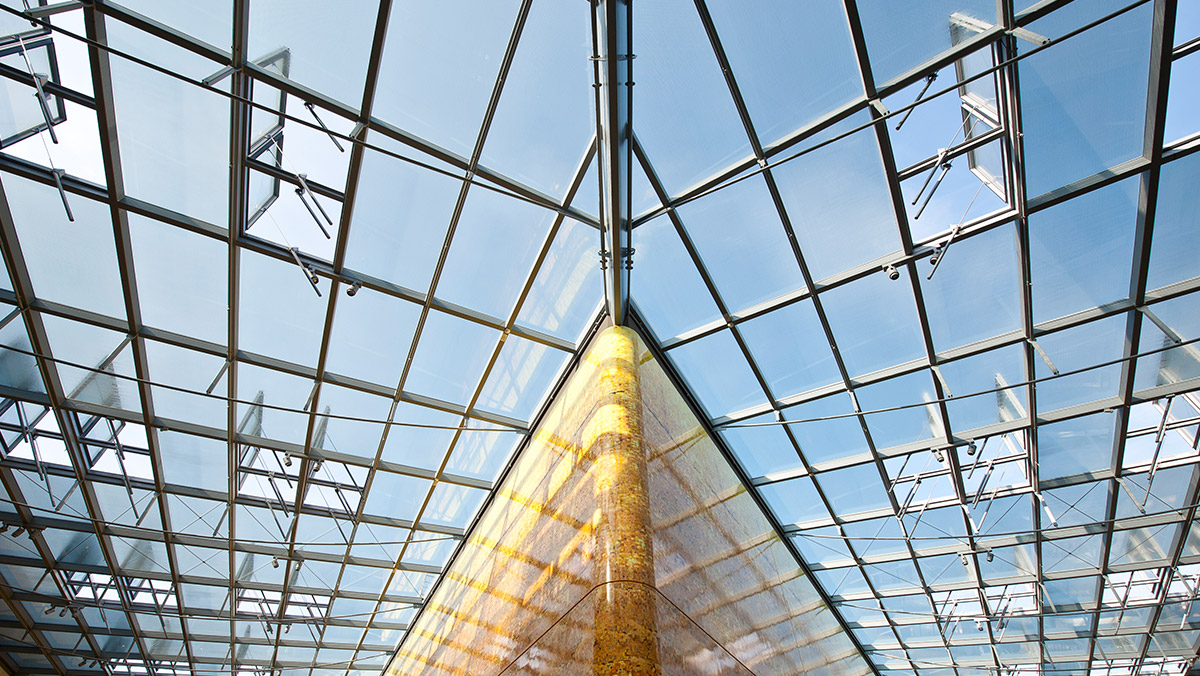

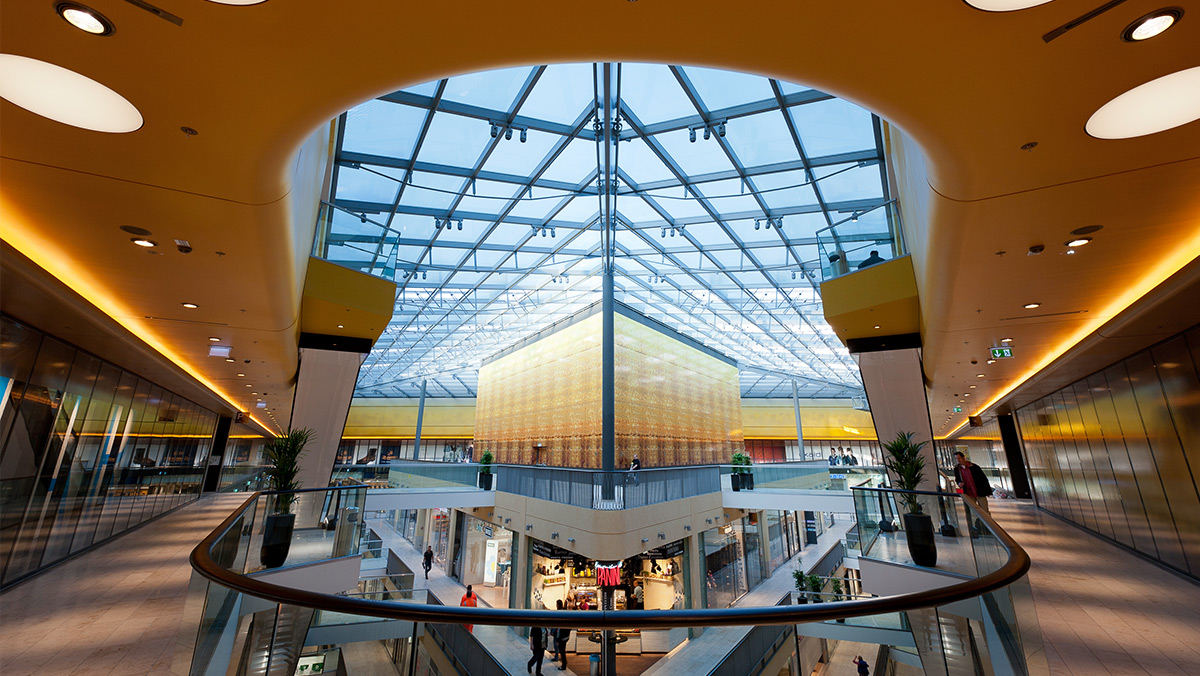

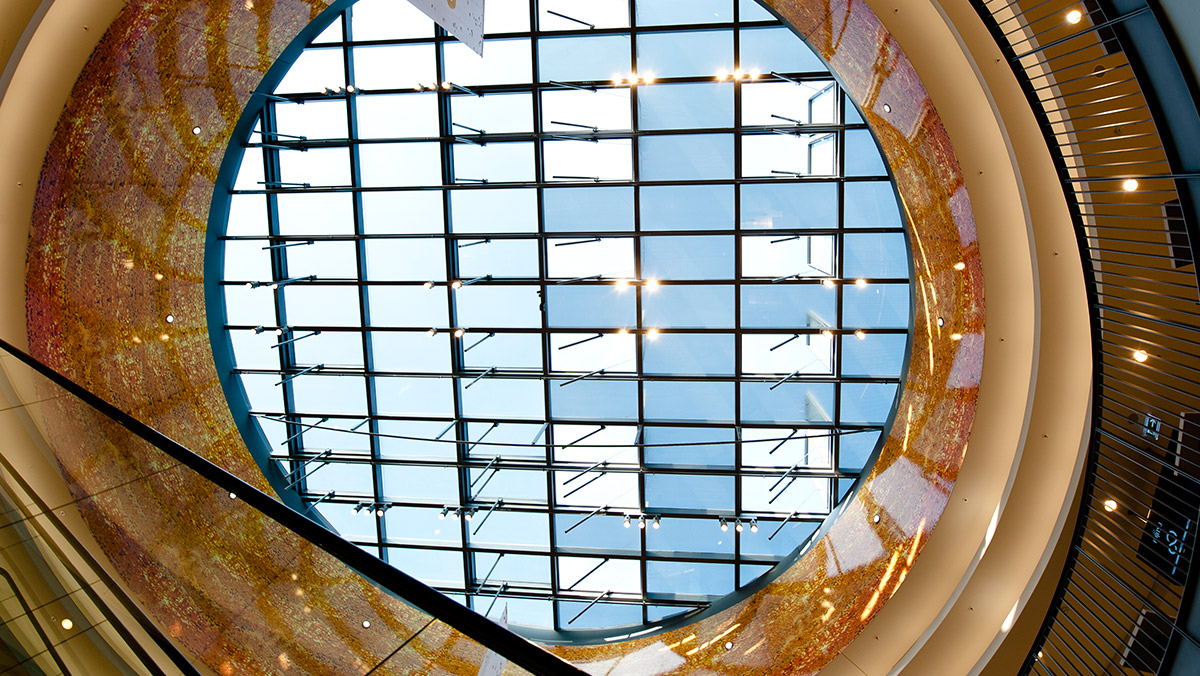

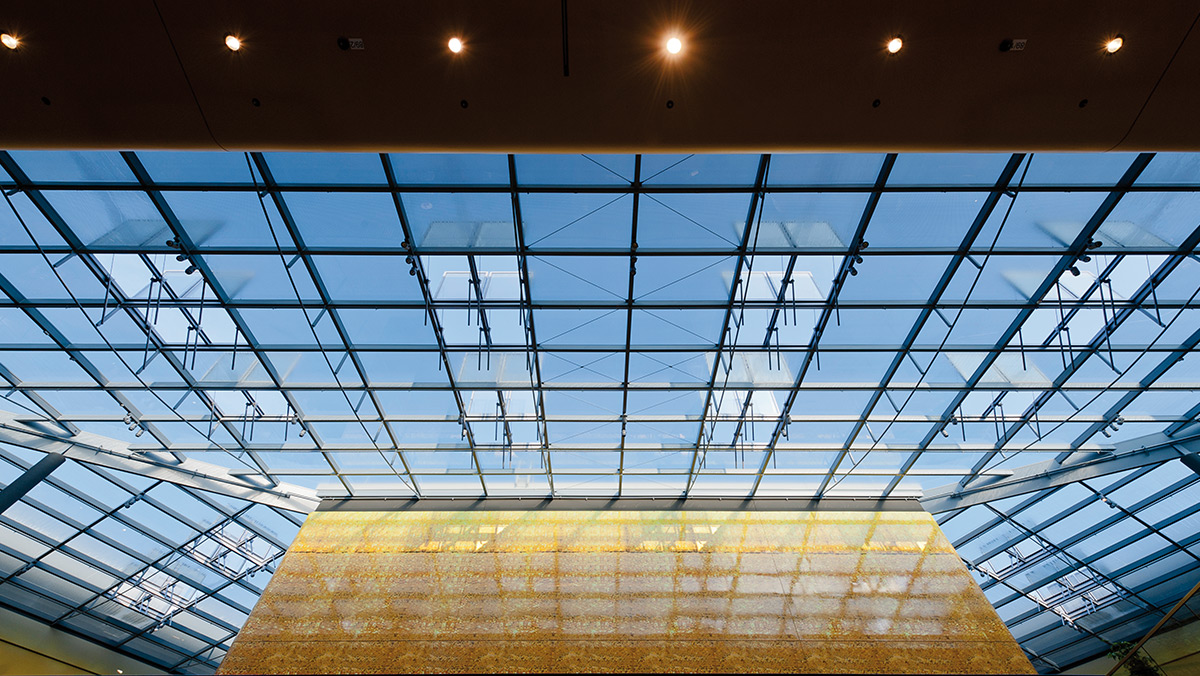

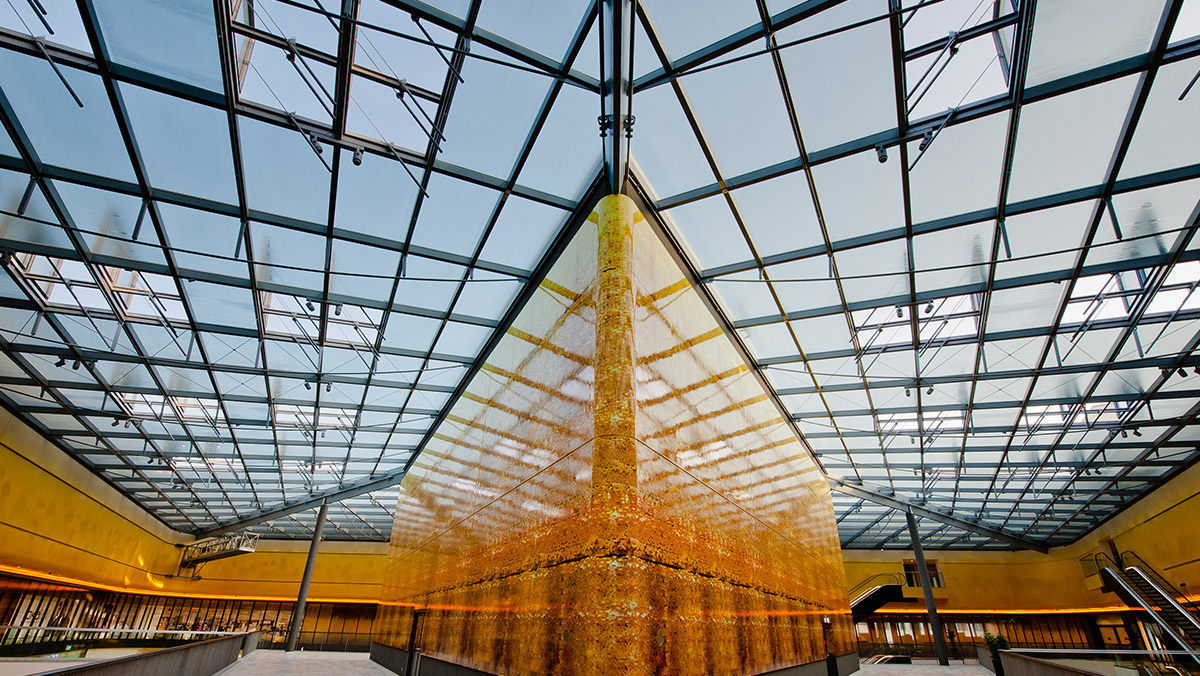

2300 m² glazed roof area, consisting of three pent roofs as well as a rotunda, bring a lot of light into the interior of the Shopping stamps. Dot-printed special glass avoids glare effects and limits the solar heat input - in the not only the companies located thereunder will benefit from this result. people from an optimal indoor climate, but also the Operators of an optimised energy balance.

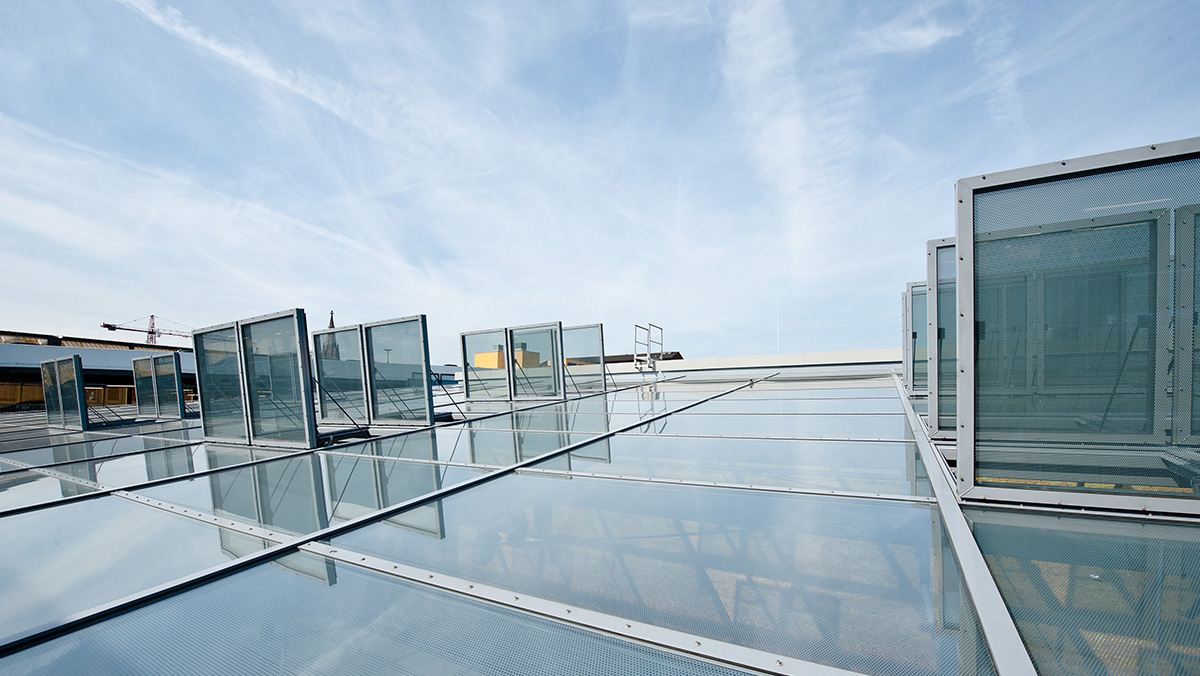

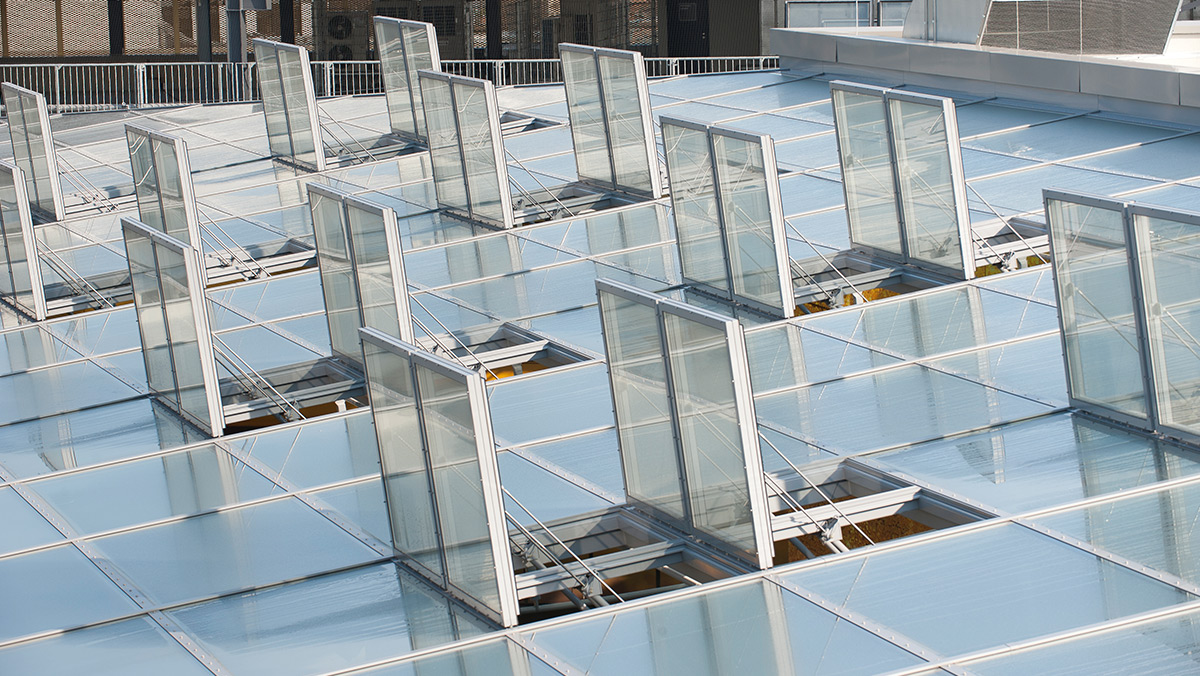

  • 116 pneumatically operated flap systems
  • LAMILUX Smoke Lift Glass Roof PR60 and LAMILUX Smoke Lift ME
  • Conception and installation of control systems
  • Control sequence automation for SHEV and ventilation functions
  • Connection to the building management system via Modbus coupling
