Flat Roof Access Hatches Comfort

Products with the highest quality standards

The highest quality standards

For us, quality does not only mean greater energy efficiency for our products, but also a particularly high level of durability through the use of the highest quality materials, certified functional reliability for daily use, and a perfectly shaped design.

Arrives pre-assembled at construction site

We deliver our Flat Roof Access Hatches Comfort Swing and Square with integrated controls completely pre-assembled to the construction site. For the Comfort Solo and Duo, the control unit needs to be installed on site. This reduces the amount of crane work, fasteners, and seals.

Proven functionality

As a planner and fabricator, you benefit from the simple and fast usability of our flat roof egresses, which brings planning reliability with regard to weather, and saves time and costs. Once the roof is closed, dry construction can begin.

Optimum quality and user friendliness

Customised luxury – daylight at its best

While garden lovers enjoy the benefits of their garden in summer and winter, city dwellers can enjoy fresh air and daylight on their own roof terrace.

With the LAMILUX Flat Roof Access Hatches Comfort, a new dimension of roof access is made possible: convenient and direct access to the roof terrace.

The Comfort range features unrivalled light incidence and creates exclusive access to the roof. The high energy efficiency of our systems and the unrestricted use as a ventilation device also benefit the entire indoor climate. This turns every attic flat into an exclusive architectural highlight giving an oasis of well-being for residents.

Retreat above the roofs

With a reference video, we take you to the Brandenburg city housing estate and show you the unique atmosphere of our flat roof access hatch. Discover the retreat above the rooftops of the city!

Townhouse Berlin

Up on the roof – but how?

In many cities there is high demand for top floor apartments – the planning stage has hardly begun and they are already rented or sold. A roof terrace can add a further highlight to these stylish apartments. Our roof access hatch solutions offer one of the most exclusive ways to access the roof. The interiors are flooded with light thanks to the vast glass surfaces and the roof terrace outside can even be added proportionally to the living space.

Suitable for daily ventilation use

A decisive factor for ensuring a comfortable indoor climate and for preventing mould growth is regular air exchange. You can open our Flat Roof Access Hatches Comfort fluently and use it daily for natural ventilation. The large glass surfaces in combination with the filigree frame construction bring you maximum daylight incidence and a relaxed feel-good atmosphere in the building.

Safety

The safety of our customers is very important to us. Our Flat Roof Access Hatches Comfort comply with the Machinery Directive according to the CE marking and thus meet the legal EU requirements to ensure maximum safety, health and environmental protection. Optionally, our roof access hatches can also be buffered with an emergency power supply via a 24V battery.

Highest quality standards

Our Flat Roof Access Hatches Comfort not only offer an overall construction free of thermal bridges, but also the highest standards of quality. They can be equipped with high-quality functional glass, according to your individual requirements. The robust construction offers unrivalled rigidity, especially when open, which means that the elements can be used without restriction as access hatches or ventilation systems.

Individuality for personal needs

Our Flat Roof Access Hatches are available in different sizes, which gives you maximum freedom in terms of the on-site stair design. Whether with thermal insulation glazing or special solar control glazing, our elements are freely configurable. You decide on the colour design of the aluminium profiles according to the RAL chart, inside as well as outside. In addition, a blind system can be fitted for summer heat input (except for the Flat Roof Access Hatch Comfort Duo).

Unique comfort

Exclusive living and personalised luxury in an elegant design

Exclusive living, personalised luxury in an elegant design: All this is combined in the LAMILUX Flat Roof Access Hatches Comfort. The Flat Roof Access Hatches feature an unprecedented interplay of form and function. No unnecessary edges or joints disturb the clear design. They also offer plenty of daylight, manually controllable natural ventilation,

and a comfortable access hatch onto the flat roof. Thanks to the unique design and the outstanding functionality, the Flat Roof Access Hatches Comfort have already received several awards, such as the German Design Award 2017 (Solo), the German Design Award 2020 (Swing) and the Red Dot Design Award 2021 (Square).

Our Premium Flat Roof Access Hatches Comfort

Plenty of sizes, glazing types and variants

Flat Roof Access Hatch Comfort Square

Flat Roof Access Hatch Comfort Square

The design solution

200 x 200 cm

Customised colouring according to RAL

Triple glazing

5° surface inclination over the upstand, flat drainage surface

Fully pre-assembled

Concealed drives (hydraulic cylinder)

Roof access hatch on three sides via spiral staircase and platform staircase (provided by customer)

Optionally with emergency power supply buffered via 24V battery /manual operation

Crane eyes available

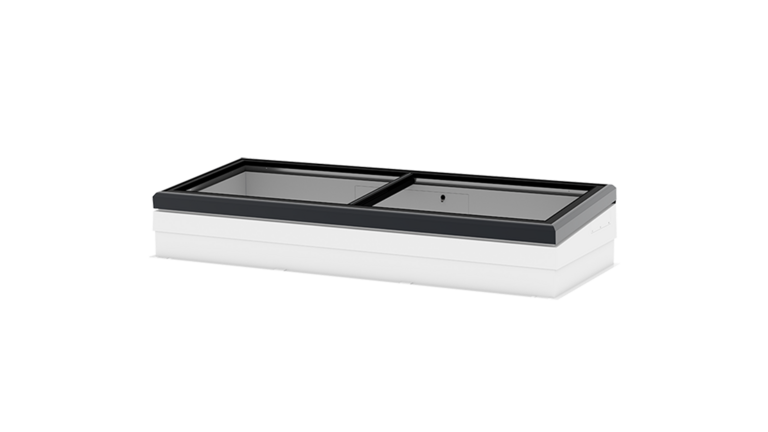

Flat Roof Access Hatch Comfort Swing

Flat Roof Access Hatch Comfort Swing

The modern one

100 x 300 cm or 100 x 350 cm

Customised colouring according to RAL

Triple glazing

5° surface inclination over the upstand, flat drainage surface

Fully pre-assembled

Concealed drives (hydraulic cylinder)

Roof access hatch via straight staircase (provided by customer)

Optionally with emergency power supply buffered via 24V battery/ manual operation

Crane eyes available

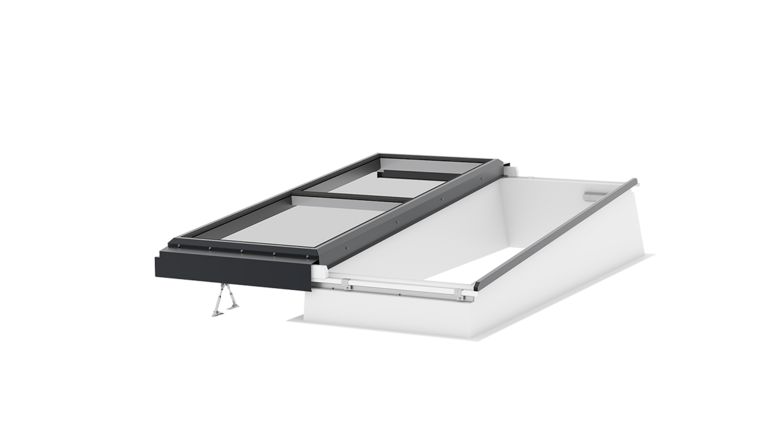

Flat Roof Access Hatch Comfort Solo

Flat Roof Access Hatch Comfort Solo

The classic one

120 x 350 cm

Customised colouring according to RAL

Triple glazing

6° surface inclination over the upstand, flat drainage surface

Partially pre-assembled, control unit needs to be installed

Two rack-and-pinion drives not visible from the inside

Roof access hatch via straight staircase (provided by customer)

Optionally with emergency power supply buffered via 24V battery

Without crane eyes

Flat Roof Access Hatch Comfort Duo

Flat Roof Access Hatch Comfort Duo

The practical one

120 x 300 cm

Customised colouring according to RAL

Double glazing

3° surface inclination over the upstand, 5° inclined partial glazing

Partially pre-assembled, control unit needs to be installed

Four rack-and-pinion drives not visible from the inside

Roof access hatch via straight staircase (provided by customer)

Optionally with emergency power supply buffered via 24 V battery

Without crane eyes

Fire protection

Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5

Personal protection

Fall-through protection as per DIN EN 18008-6 in closed position

Declaration

Complies with the Machinery Directive according to CE marking

Daily benefit

Our Flat Roof Access Hatches have been tested for at least 5,000 openings

Our Flat Roof Access Hatches

Above the rooftops of the cities

More comfort in roof access.


„The search for promising properties is becoming increasingly difficult. It is therefore all the more important to develop as much living space as possible from the building footprint during project planning and development. With the flat roof access hatches from LAMILUX, we have a technically high-quality product that demonstrates innovative use, and durability, and ease of maintenance, making it possible to access the roof terrace all year round."



Rüdiger Elfering, Technical Project Manager BAUWERT AG

We are here for you

Stay in touch with us

You would like to know more about our flat roof exit comfort or you have a concrete building project? We are looking forward to your inquiry!
