LAMILUX Flat Roof Access Hatch Comfort Swing
Comfort in exclusive design

LAMILUX Flat Roof Access Hatch Comfort Swing

Individual Luxury – Daylight at its best


The benefits at a glance

LAMILUX Flat Roof Access Hatch Comfort Swing


Design & comfort

  • Winner of the German Design Award 2020 in the Category Special Mention
  • Awarded with the Readers' Choice Award 2021 in the category Building Envelope Windows & Doors

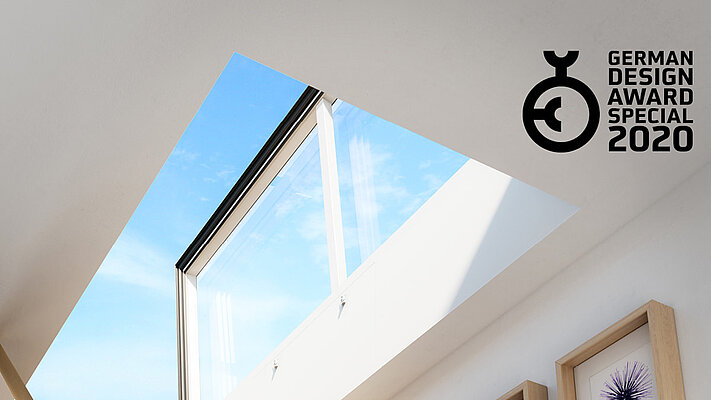

  • Generous daylight incidence

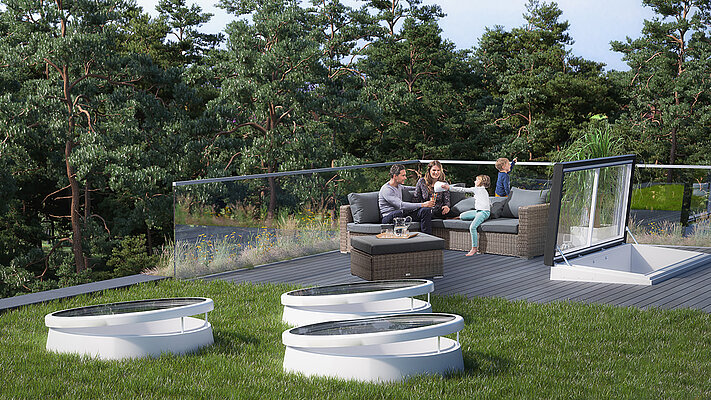

  • Convenient access to the roof terrace via stairs (on-site)
  • Flat roof access hatch opens 84° in approx. 25 seconds
  • Folding mechanism provides more space on the roof terrace
  • Self-cleaning due to inclined upstand
  • Top element and flat transition from frame to glazing
  • Stepless opening by hydraulic cylinder
  • Variety of colours according to RAL card (edging profiles and reveal area)
  • Leaf system, motor opener and top element are completely pre-assembled at the factory
  • Opening side DIN left or DIN right selectable when ordering

Safety

  • Emergency stop function during closing by light barrier
  • Closing and opening of the element possible via optional key switch
  • Can be opened or closed during a power failure by manual operation with a hand lever
  • Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
  • Fall-through proof according to DIN 18008-6
  • As a standard: Outer pane TSG, inner pane LSG
  • Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5

Energy Efficiency

  • Complete construction without thermal bridges
  • Completely thermally insulated upstand
  • Can be equipped with the highest quality functional glass
  • Minimized risk of condensation

Product configurator

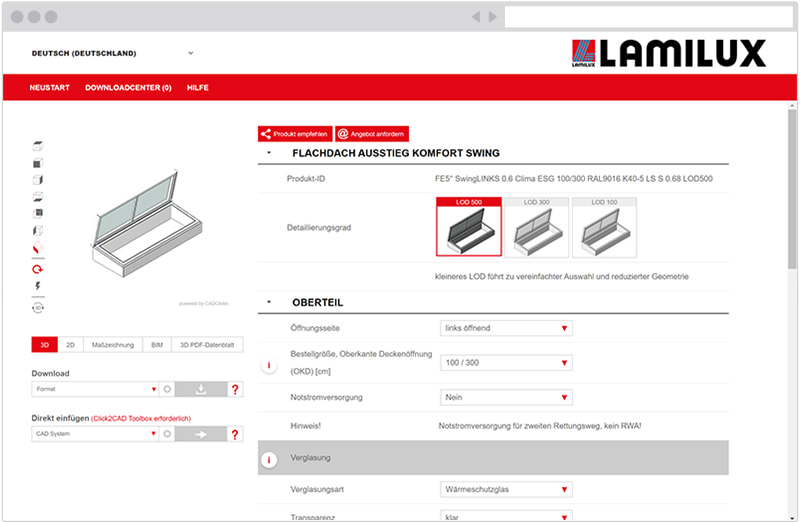

Create an individual product variant, guided by a dynamic dialog with 3D preview in real time. Then share, request with one click or download BIM objects, 2D and 3D CAD models, images, dimensional drawings or data sheets in the desired file format.

Highlight for all planners

With BIM or without – the PDF data sheet with all technical properties including active 3D model, dimensional drawing and link back to configuration is the ideal all-in-one document of your desired product variant. Generate it yourself now 24/7.

Equipment Variants

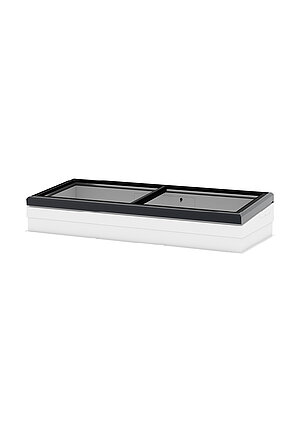

LAMILUX Flat Roof Access Hatch Comfort Swing


Glazing Types

DesignationUg-valueTranslucencyTotal energy transmissionSoundproofing
Heat protection glazing W1100,6 W/(m²K)72 %51 %39 dB
Heat protection glazing W3030,6 W/(m²K)49 %50 %39 dB
Solar protection glazing 60/30 S1170,6 W/(m²K)55 %30 %39 dB
Solar protection glazing 60/30 S1180,6 W/(m²K)37 %27 %39 dB
Solar protection glazing 50/25 S1210,6 W/(m²K)47 %26 %39 dB
Solar protection glazing 50/25 S1220,6 W/(m²K)31 %23 %39 dB
Solar protection glazing 70/37 S1250,6 W/(m²K)62 %34 %39 dB
Solar protection glazing 70/37 S1260,6 W/(m²K)42 %34 %39 dB



Sun protection

Daylight incidence and solar heat input create a broad potential to direct energy into buildings and thus save costs for heating and artificial lighting. Of course, this must not happen in an uncontrolled way, but must be adjustable by controllable shading systems. The external shading system for our LAMILUX Flat Roof Access Hatch Comfort Swing is suitable for this. With noise-optimised retractable sliders, the external awning can be easily extended using push buttons or a radio remote control, thus allowing optimum control of the amount of daylight entering the room. The cable routing is concealed and integrated in the top element.

Opening Drives

An infinitely variable opening takes place over the leaf by one hydraulic cylinder per narrow side, which is operated by an electrically operated hydraulic unit (230 V). The Flat Roof Access Hatch Comfort has a limit switch as opening monitoring on the opposite narrow side of the exit as well as a light barrier for monitoring the exit area of the element. To open the element, the hydraulic unit is controlled via a key switch with dead man's switch.

Top Element

The top element (top roof edge dimensions 100 cm x 300 cm or 100 cm x 350 cm) forms the base for the construction. It provides the ideal thermal connection to the building structure. The extension element consists of a steel construction and is insulated throughout with mineral wool. The inside is covered with a coated aluminium sheet in all RAL Classic colours and the outside with white pigmented GRP. The top element complies with DIN 18234 - prevention of fire expansion on the roof without additional measures.

The height of the top element is 41 cm on the eaves side and 50 cm on the opposite long side.  The inclination of the surface is 5°, which supports an ideal self-cleaning of the element.

Energy Efficiency

Our LAMILUX Flat Roof Access Hatch Comfort Swing has optimal isothermal curves and thus a minimized condensation risk. The flat roof access hatch also has high thermal insulation in the joint area.
