LAMILUX FireShield®

Flame retardant surfaces


Versions

LAMILUX FireShield® can be ordered in the following versions

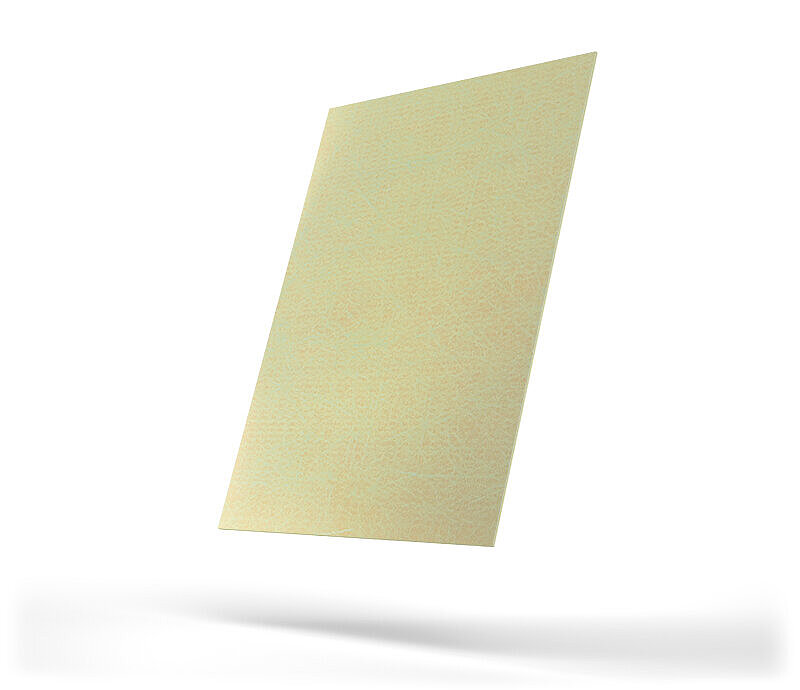

LAMILUX FireShield® 600 is available

  • In thicknesses 1.0 mm, 1.5 mm, 2.0 mm, other thicknesses on request
  • In widths up to 3.20 m
  • As sheets or coils
  • With woven roving reinforcement
  • As semi-translucent undyed laminate for invisible construction applications
  • With different treatments on the back surface (smooth, corona, or soft sanded), on request

Specific product advantages

  • Fulfilment of complex flame retardant requirements combined with mechanical performance and further advantages of fibre-reinforced plastics
  • Halogen-free flame retardant products, exceeds the requirements of Regulation (EC) No. 1907/2006 (REACH)
  • Flame retardant configuration based on requirements for B-s1,d0 (DIN EN 13501-1), Class 1 (BS 476, Pt. 7), HL3 (DIN EN 45545-2 R10)

Sectors

  • Construction
  • Rail transport

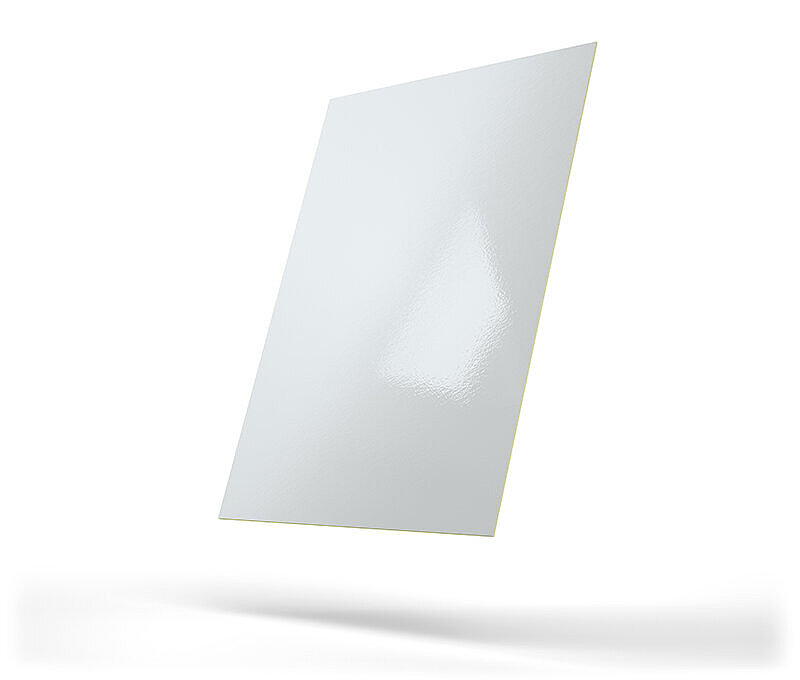

LAMILUX FireShield® 610 is available

  • In 1.8 mm, 2.2 mm, 3.0 mm thicknesses and with woven roving reinforcement (Gewebe) in 2.0 mm thickness
  • In widths up to 3.20 m
  • As sheets or coils
  • With woven roving or CSM reinforcement
  • With gelcoat surface for hygiene and optimal cleanability, as well as highest resistance to UV rays and weathering
  • With antibacterial "AntiBac" effect on request
  • With gelcoat in different colours: RAL, NCS scale and customer-specific
  • With different treatments on the back surface (smooth, corona, or soft sanded), on request

Specific product advantages

  • Fulfilment of complex flame retardant requirements combined with mechanical performance and further advantages of fibre-reinforced plastics
  • Halogen-free flame retardant products, exceeds the requirements of Regulation (EC) No. 1907/2006 (REACH)
  • Flame retardant configuration based on requirements for D-s2,d0 (DIN EN 13501-1), reduced fire load compared to non-flame retardant laminates combined with established gelcoat system

Sectors

  • Construction
  • Mobile units, special-purpose vehicle construction

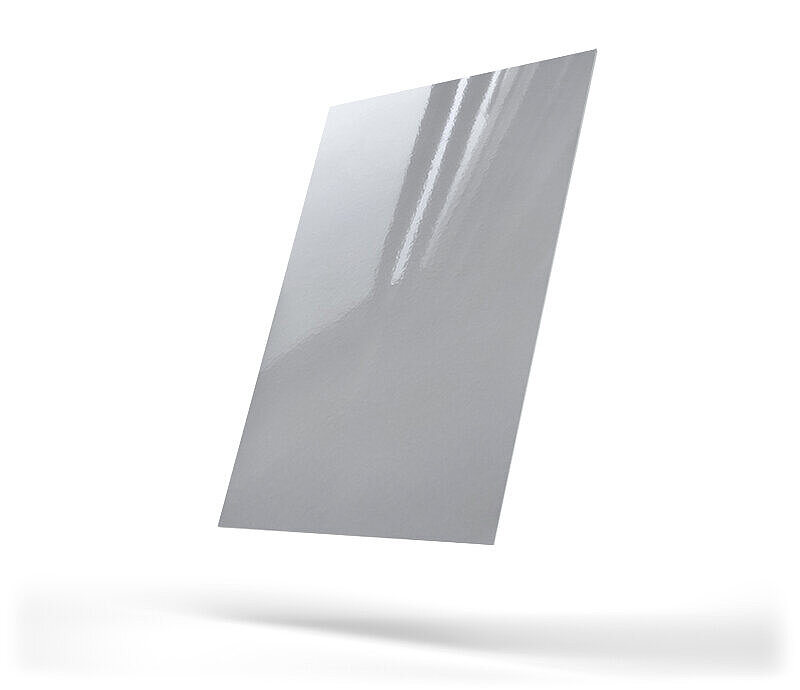

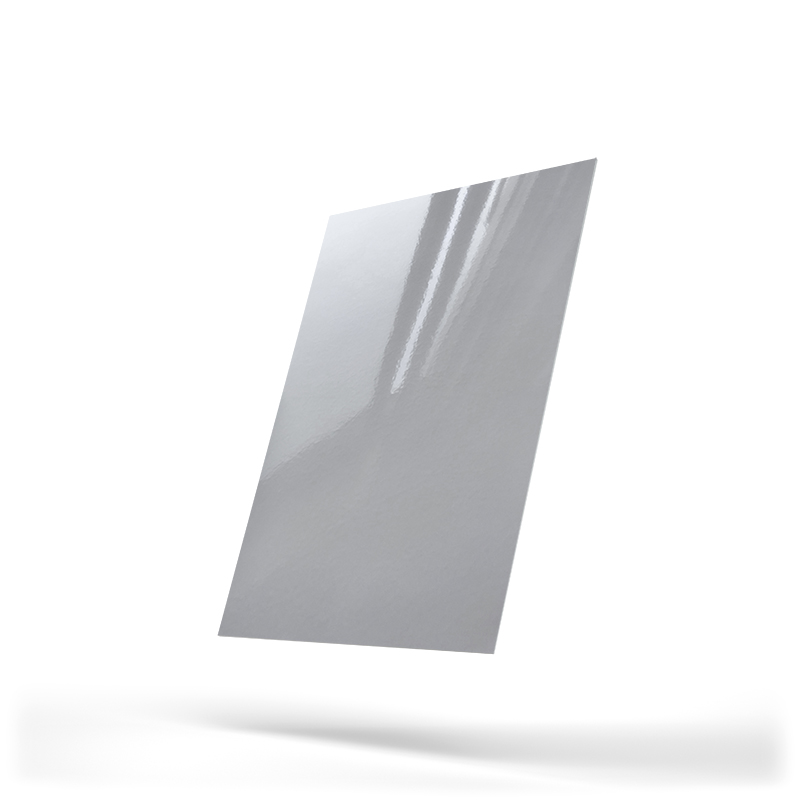

LAMILUX FireShield® 630 is available

  • In 1.8 mm, 2.2 mm, 3.0 mm thicknesses and with woven roving reinforcement (Gewebe) in 2.0 mm thickness
  • In widths up to 3.20 m
  • As sheets or coils
  • With woven roving or CSM reinforcement
  • With gelcoat surface for hygiene and optimal cleanability, as well as high resistance to UV rays and weathering
  • With antibacterial "AntiBac" effect on request
  • With gelcoat in various white and grey colours: RAL, NCS scale and customer-specific
  • With different treatments on the back surface (smooth, corona, or soft sanded), on request

Specific product advantages

  • Fulfilment of complex flame retardant requirements combined with mechanical performance and further advantages of fibre-reinforced plastics
  • Halogen-free flame retardant products, exceeds the requirements of Regulation (EC) No. 1907/2006 (REACH)
  • Flame retardant configuration based on requirements for C-s2,d0 (DIN EN 13501-1) The construction material class “flame retardant” is achieved with a gelcoat system

Sectors

  • Construction
  • Mobile units, special-purpose vehicle construction

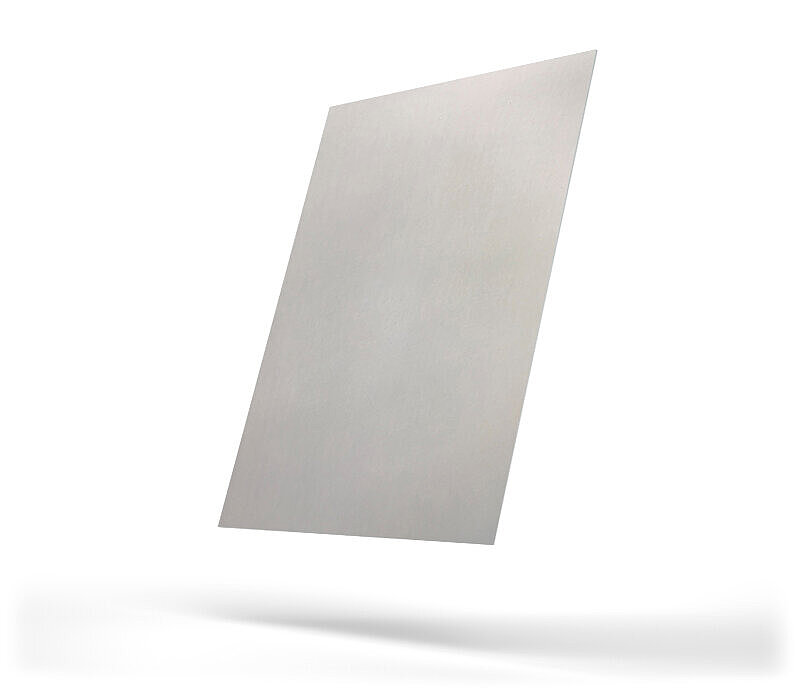

LAMILUX FireShield® 670 is available

  • With a thickness of 2.0 mm
  • In widths up to 3.20 m
  • As sheets or coils
  • With woven roving reinforcement
  • With white matt, sandable and fibre-free surface for paintability or subsequent coating
  • With different treatments on the back surface (smooth, corona, or soft sanded), on request

Specific product advantages

  • Fulfilment of complex flame retardant requirements combined with mechanical performance and further advantages of fibre-reinforced plastics
  • Halogen-free flame retardant products, exceeds the requirements of Regulation (EC) No. 1907/2006 (REACH)
  • Flame retardant configuration based on requirements for B-s2,d0 (DIN EN 13501-1), HL2 (DIN EN 45545-2 R1 & R7), HL3 ((DIN EN 45545-2 R10)
  • Paintable material

Sectors

  • Construction
  • Rail transport
  • Mobile units, special-purpose vehicle construction

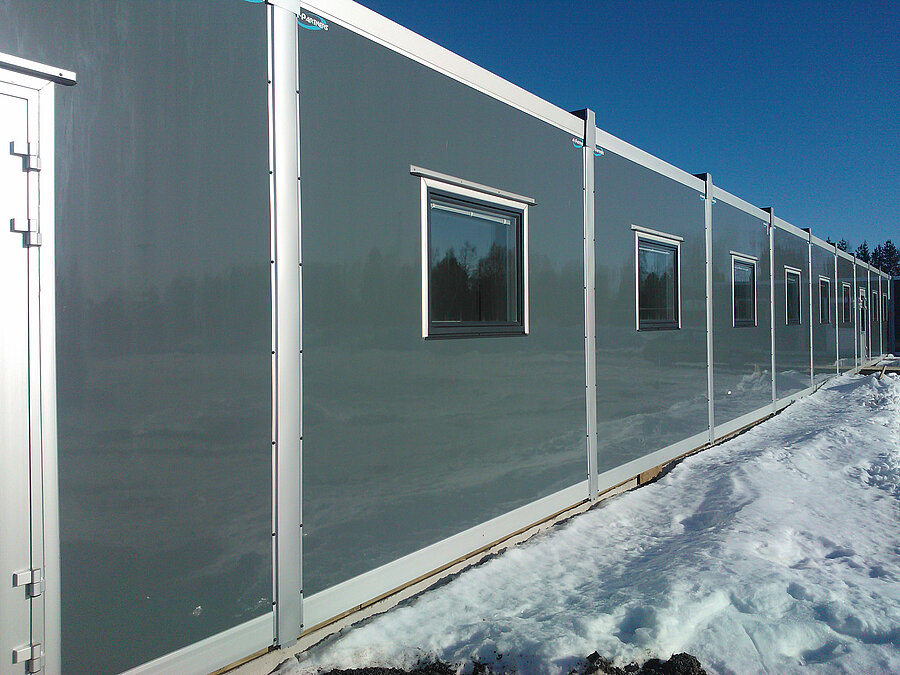

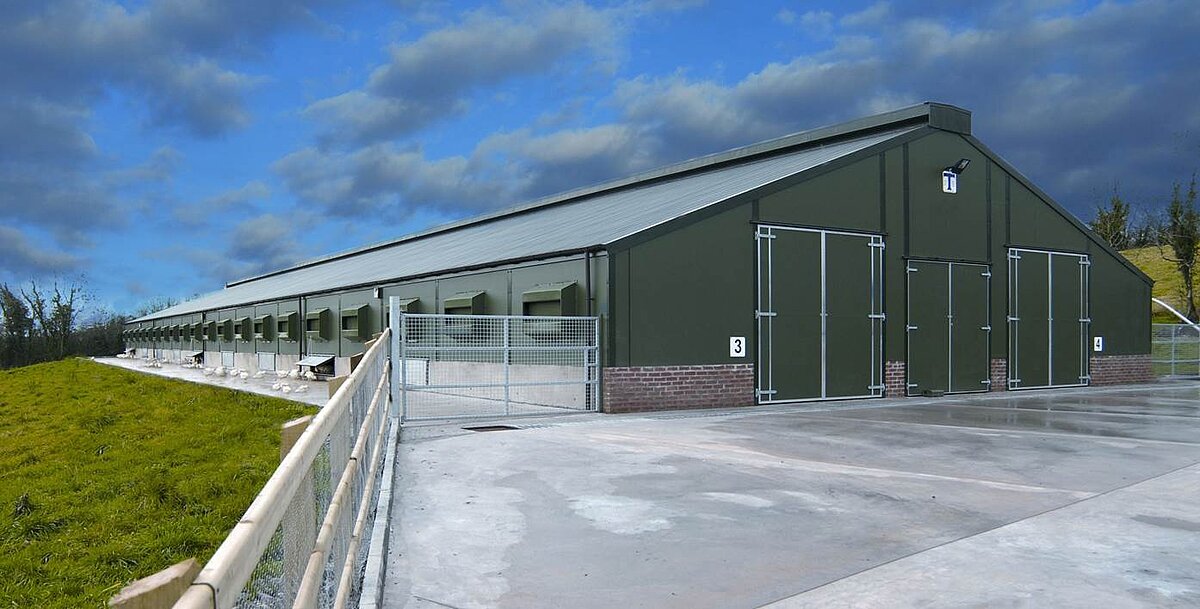

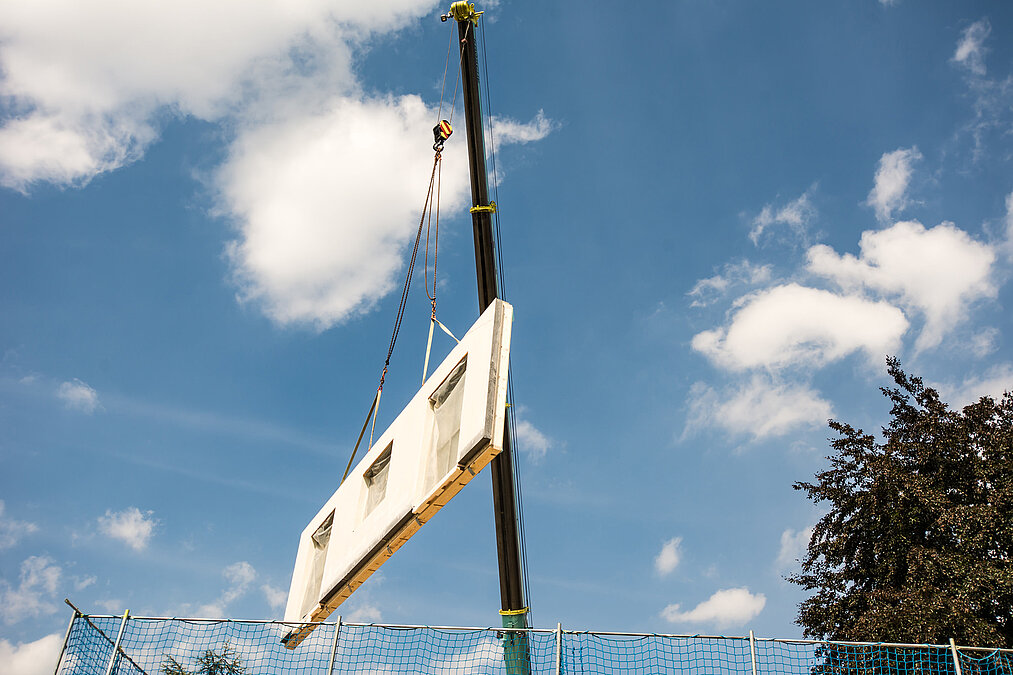

Application pictures

Examples of practical use


Contact Persons

Do you have any further questions or would you like to find out more about LAMILUX Composites GmbH?

Please feel free to contact us.

Request your individual sample here

LAMILUX FireShield®


Downloads

LAMILUX FireShield®

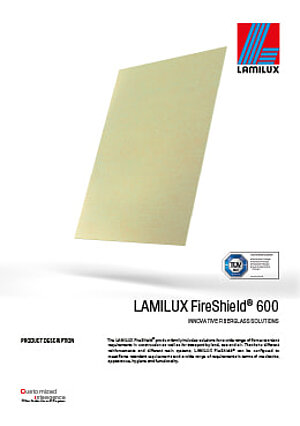

LAMILUX FireShield® 600

Product data sheet

en-us-gb

Download collection

Download

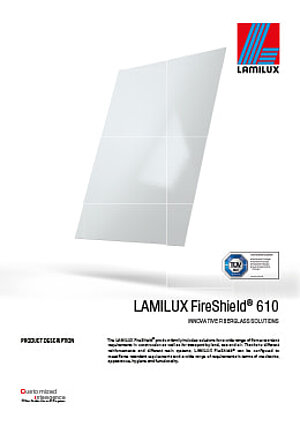

LAMILUX FireShield® 610

Product data sheet

en-us-gb

Download collection

Download

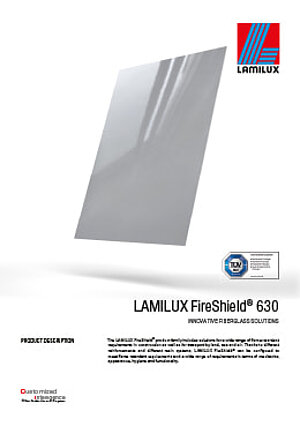

LAMILUX FireShield® 630

Product data sheet

en-us-gb

Download collection

Download

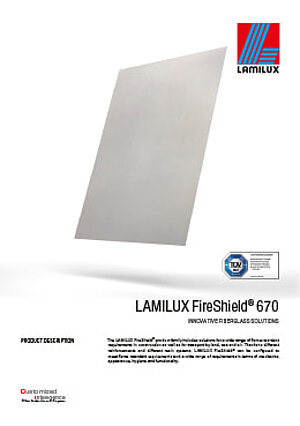

LAMILUX FireShield® 670
