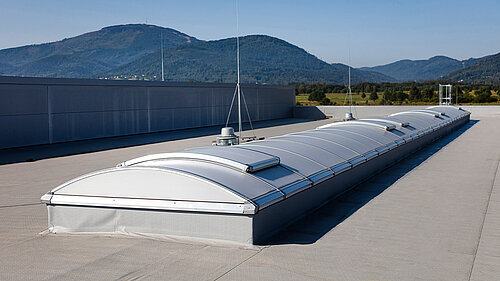

LAMILUX Continuous rooflight B
The world's first continuous rooflight with certified watertightness
Benefits at a glance
Continuous Rooflight B
Energy efficiency
- Perfect heat insulation with European approval for use
- Integrated, modular sytem which consists of many perfectly matched and innovative individual components
- The internal and external metal components, both in the load-bearing structure and in the flap systems, are completely thermally separated from one another.
- Use of the isothermal load converter (ITL) – a component for the use of material with excellent heat insulation properties at the anchor point
- Composite glazing with extremely low thermal transmittance coefficients

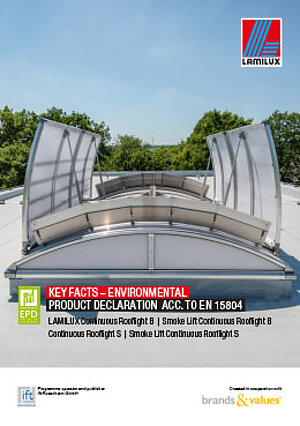

- LCA made easy: For our Continuous Rooflight B there is an comprehensive product declaration according to ISO EN 15804
- Blower door tested: Suitable for airtight building envelopes with a maximum air permeability of 6.5m³/( h•m) at a differential pressure of 50 Pascal
Stability, safety & shevs
- The world's first continuous rooflight with audited watertightness under heavy rain and storm (DRI 3.0 m/s²)
- Effective ventilating action with the Smoke Lift continuous rooflight B (DIN EN 12101-2), as a double or single flap
- In case of fire, they are quickly opened by means of thermal release, thermal and CO2 remote release or electric remote release
- All smoke and heat exhaust systems can also be combined with ventilation systems
- Extremely stable when open guaranteed by spring-loaded multiple joint traverses connected directly to the flap construction
- Optional: Glazing made of glass-fibre reinforced polyester is highly resistant to UV light and weathering due to its special material characteristics
Tested & certified
European Technical Approval - ETA:
The test assessment for the Continuous Rooflight B is based on the approval guidelines drawn up by the European Organisation for Technical Approval (ETAG). The approval issued to LAMILUX takes into account all key product features needed to comply with the building regulation requirements in individual EU countries.
General Technical Approval:
German General Technical Approvals (ABZ) are issued for all German Federal States by the German Institute of Building Technology (Deutsche Institut für Bautechnik - DIBt). This certificate verifies that a construction product meets the technical requirements for its use.
The LAMILUX certificate of quality:
We thus submit evidence which confirms that our skylights are consistently manufactured and implemented in accordance with product approvals and the technical standards specified in the approvals.
Test report and european admission
- Complies with European standards regarding snow and wind loads
- Thermal protection properties tested in accordance with ETAG 010
- Watertightness likewise tested in accordance with ETAG 010
- Burn-through safety verified in accordance with DIN 18234-3
- Fire behaviour in glazing classified according to DIN 4102-2 and EN 13501-1
- Melt-out of glazing verified in accordance with DIN 18230-1
- Glazing tested as a “hard roofing” in accordance with DIN 4102-7
- Smoke and heat exhaust systems tested and classified as single- and double-flap systems in accordance with EN 12101-2
- Certified antifall grid in line with GS Bau 18 as a permanent fall-through protection
Variants

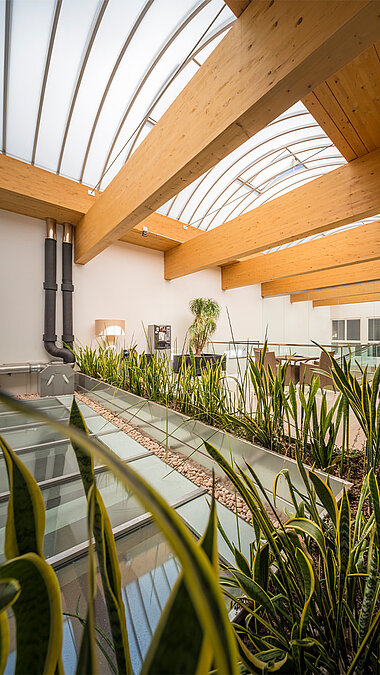

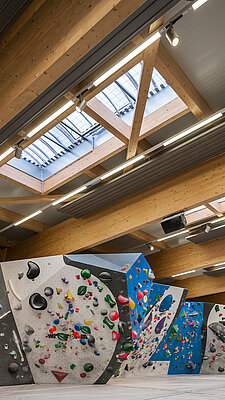

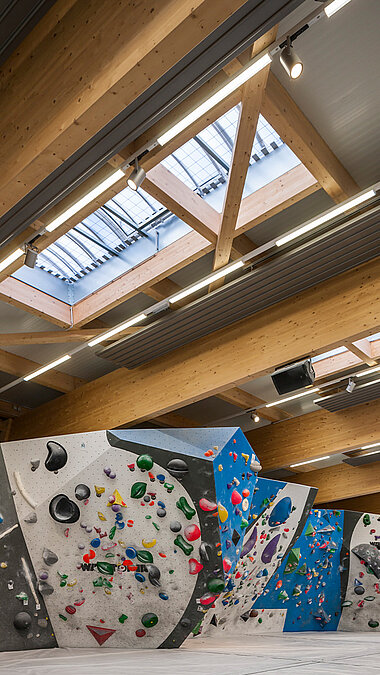

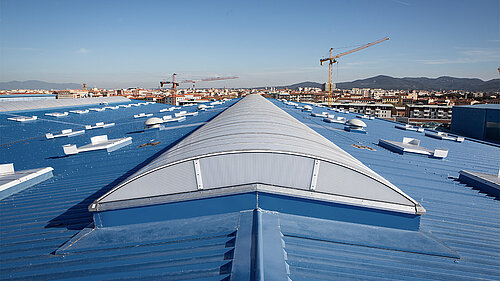

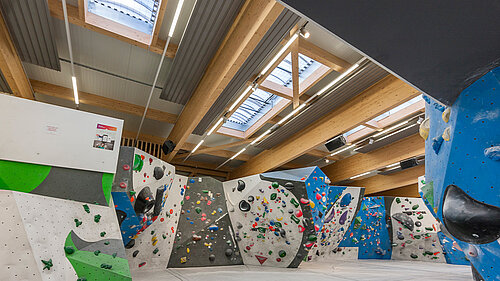

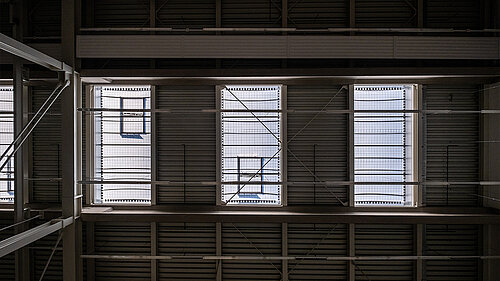

Continuous rooflight B

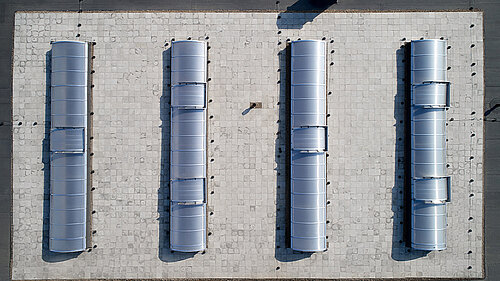

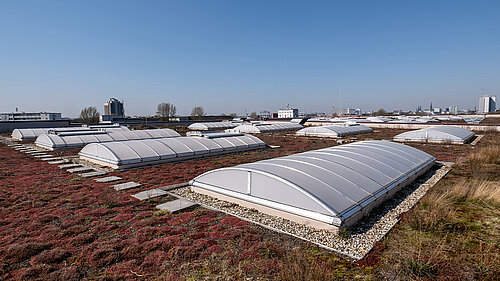

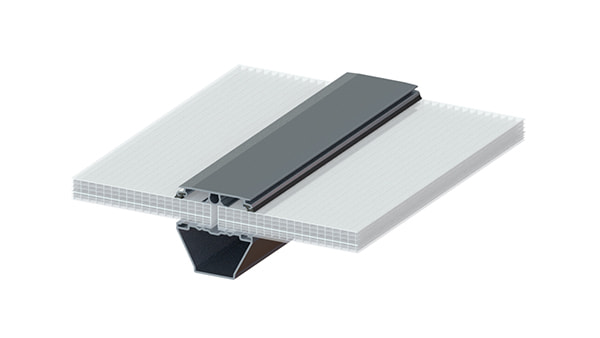

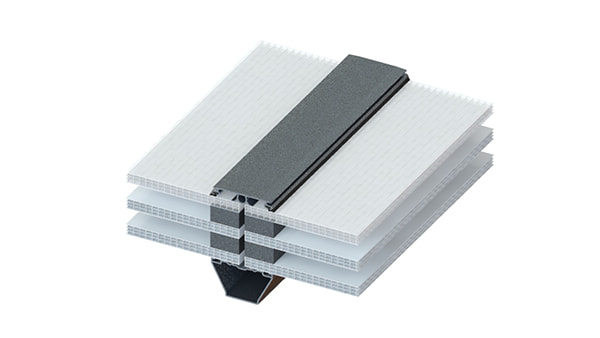

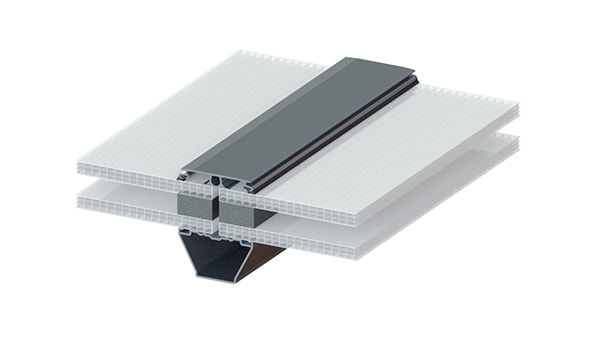

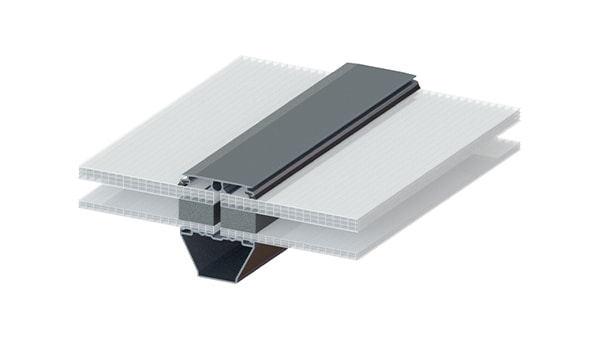

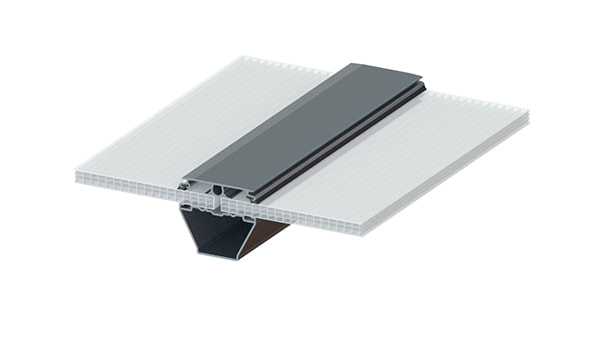

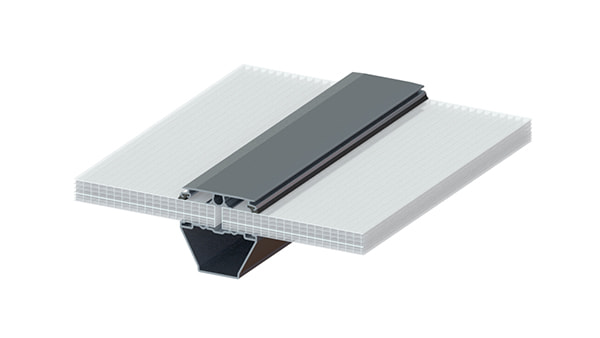

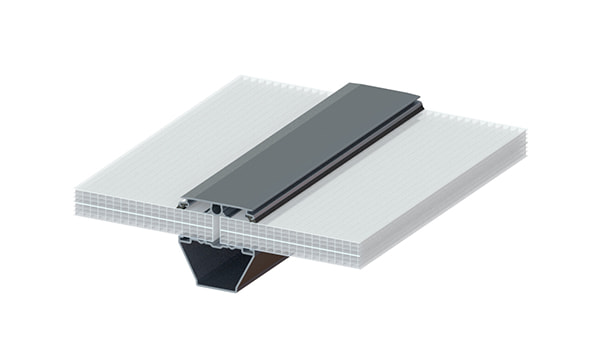

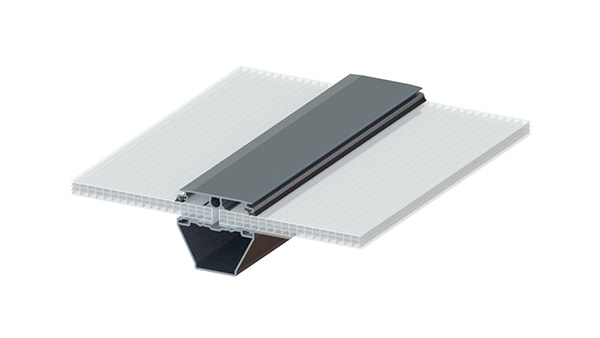

Glazing types
- Our own 32 mm thermal composite: Low flammability combined with excellent thermal insulation
- Optimum glazing for all requirements, such as sound and thermal insulation, light transmittance and chemical resistance
- Multi-layer, opal polycarbonate panels (glare-free) offered as standard
- Clear panels at no extra charge
- Possible to add sun protect (partly)
- "Hard roofing" possible – combined with melt-out surface
- GF-UP + GF-UP glazing variations upon request
Note: Ug value is determined per DIN EN 673 (vertical installation). The profile structure's actual heat transmission values, including those of base profiles, gable wall profiles and flap profiles, have to be used to calculate the Continuous Rooflight's energy values.
Ug value: 2.5 W/(m²K)
Sound insulation value: 17 dB
Building material class: B-s1, d0
Light transmittance: approx. 61%
Ug value: 2.4 W/(m²K)
Sound insulation value: 20 dB
Building material class: E, d0
Light transmittance: approx. 51%
Ug value: 1.8 W/(m²K)
Sound insulation value: 17 dB
Building material class: B-s1, d0
Light transmittance: approx. 49%
Ug value: 1.8 W/(m²K)
Sound insulation value: 20 dB
Building material class: E, d0
Light transmittance: approx. 36%
Ug value: 2.3 W/(m²K)
Sound insulation value: 27 dB
Building material class: E, d0
Light transmittance: approx. 54%
Ug value: 1.6 W/(m²K)
Sound insulation value: 19 dB
Building material class: E, d0
Light transmittance: approx. 39%
Ug value: 1.6 W/(m²K)
Sound insulation value: 20 dB
Building material class: E, d0
Light transmittance: approx. 32%
Ug value: 1.4 W/(m²K)
Sound insulation value: 17 dB
Building material class: B-s1, d0
Light transmittance: approx. 49%
Ug value: 1.2 W/(m²K)
Sound insulation value: 18 dB
Building material class: E, d0
Light transmittance: approx. 39%
Ug value: 1.2 W/(m²K)
Sound insulation value: 21 dB
Building material class: E, d0
Light transmittance: approx. 32%
Ug value: 1.3 W/(m²K)
Sound insulation value: 24 dB
Building material class: E, d0
Light transmittance: approx. 39%
Ug value: 1.8 W/(m²K)
Sound insulation value: 19 dB
Building material class: E, d0
Light transmittance: approx. 31%

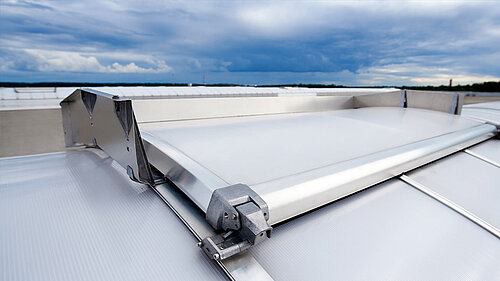

Flap systems for SHEV and ventilation
- Integration as single flap or flap-on-flap system
- Opening and closing is either manually-triggered or automated using the control system through electric motors (24 Volt/ 230 Volt) with a spindle drive or pneumatic drive assemblies with pneumatic cylinders
- Wind and rain sensor set
- Optional: energy-efficient, automated control of flap systems for natural ventilation
- Optimal impermeability to driving rain through welded sealing frame with anti-splash lip and an integrated balloon sealing
Large Ventilation Flap BE Single Flap
| Type | Opening surface Ageo |
|---|---|
| 100/100 | 0,93 m² |
| 100/200 | 1,96 m² |
| 125/100 | 1,17 m² |
| 125/200 | 2,26 m² |
| 150/100 | 1,43 m² |
| 150/200 | 2,45 m² |
Smoke Lift Continuous Rooflight B
Can be supplied as a single flap system or as symmetrical or asymmetrical double flap system (more information here)
Accessories
Continuous Rooflight B
Fall-through protection grid
- Permanently fall-through proof in line with employers' liability insurance association approval certificate
- For clear widths of between 1.00 and 6.00
- Can be mounted to curved sheets

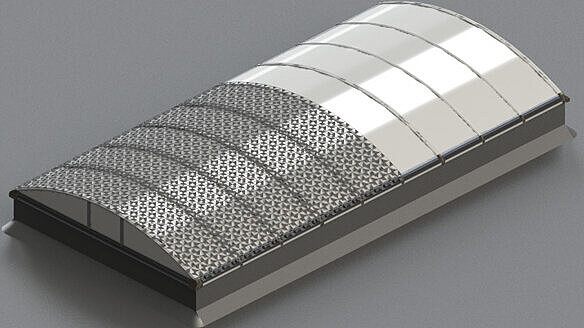

Sun protection
- Metal screen in any RAL colour
- Featuring a deciduous tree design for a natural shading effect
- Complies with GS BAU 18 – Permanent fall-through protection
- Protection against hail and UV light

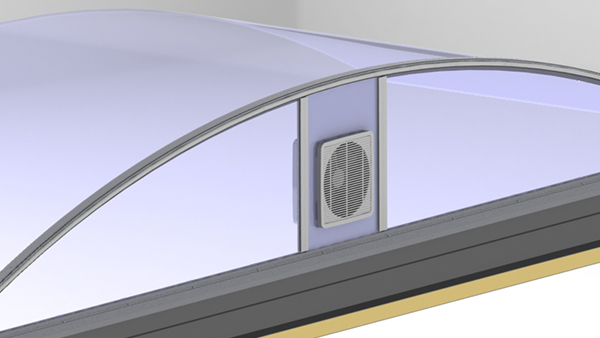

Gable wall ventilator
- All ventilators have an electric cover flap
- Installation depends on the width of the Continuous Rooflight, installation position, incline of the ridge section...

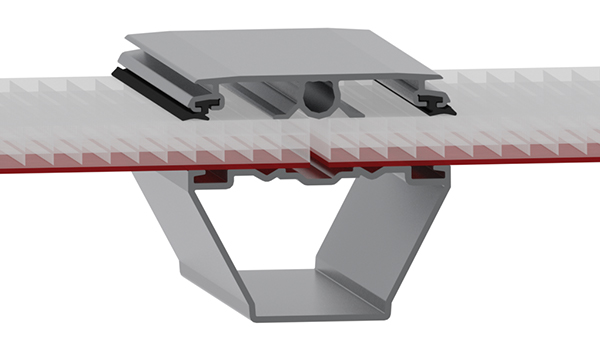

"Hard roofing”
- The Continuous Rooflight B glazing meets the conditions for "hard roofing" and "melt-out area" at the same time – or comply with these two characteristics separately
- It meets the DIN 4102-7 requirements for flying sparks and radiating heat – as confirmed by MFPA Leipzig GmbH (Approval No. PZ III/B-05-028)
Colouring
- LAMILUX steel sheet upstands and all visible aluminium profiles can be custom coated in RAL colours on request

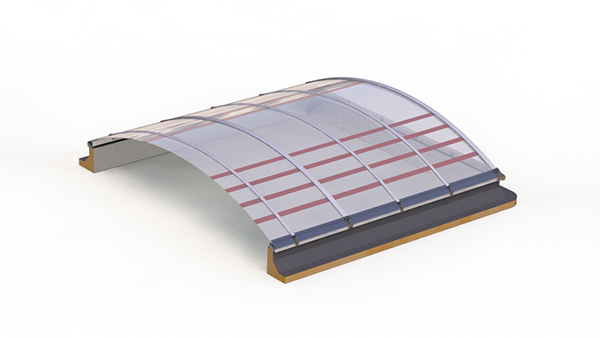

LSS – LAMILUX safety stripe
- Permanent fall-through protection in accordance with requirement GS BAU 18 to ensure protection even before installation of the glazing
- Discreet safety zone integrated into the lower section of the glazing
- Lasting safety: Not influenced by weathering or ageing of the glazing
Smoke seal
- Smoke-tight, non-flammable A1
- Structure: 2mm aluminium / 10mm PC / 2mm aluminium
- Use: Compartmentation of smoke sections where the PC of the Continuous Rooflight glazing melts and the smoke seal further restricts the smoke section
Insect protection grid
- Integration into the flap system to protect against insects when flaps are open
Attachment point for PPE
- Attachment point for personal protection equipment against the danger of falling.
- Installation on LAMILUX Continuous Rooflight frame prepared for this purpose
- Fastening point for the use of a karabiner in combination with safety harness (EN 361) and fall arrest system (EN 363)
- Mounting for max. 3 persons
Other available accessories: Assembly opening, roof exit hatch, partition wall, blower door
Technical details
Continuous Rooflight B

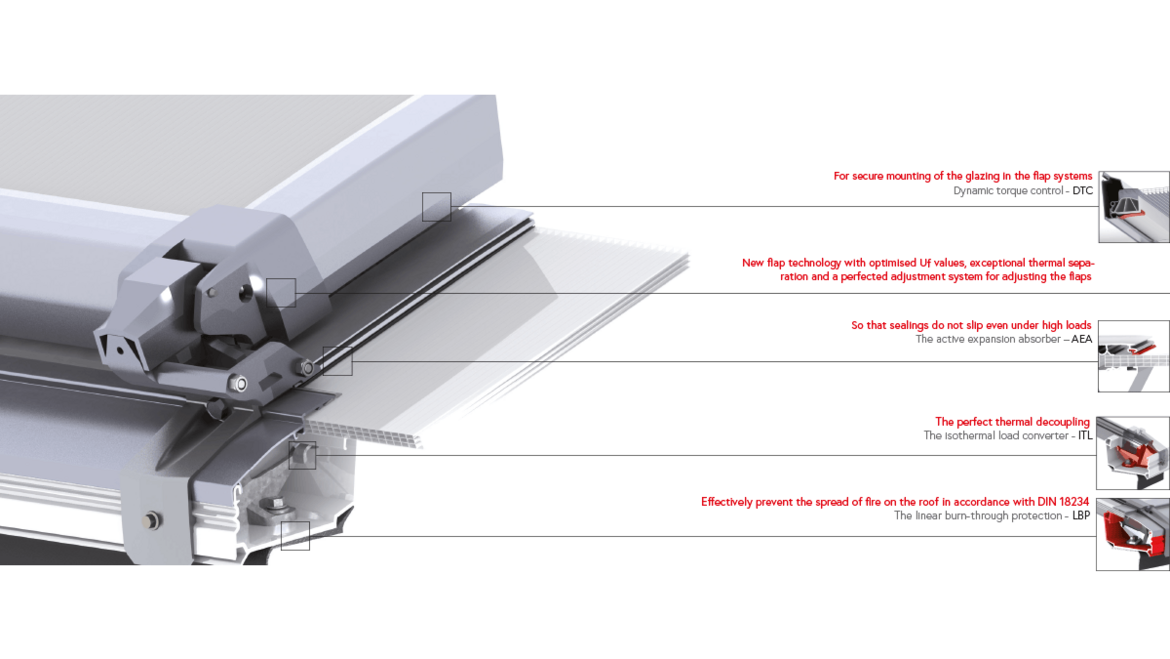

Construction details
Dynamic torque control – DTC
Effect: Integrated suspension beneath the glazing bar in the mounting frame (DTC spring) ensures that the glazing is perfectly tensioned. It is therefore secured in position by a specific holding force even when subjected to load.
Benefit: The glazing remains perfectly tensioned and secured in all situations, as any acting loads are optimally cushioned and absorbed by the mounting frame.
Protection in the event of heavy wind loads
- High stability of flaps – even in opened condition
- Even better anchorage for polycarbonate glazing
- Additional flap system protection due to spring-mounted, multiple-joint traverses
Active expansion absorber – AEA
Effect: The Active Expansion Absorber compensates the tension and expansion which occurs when under loads. This is achieved through the continuous, shear-resistant connection between the seals and the cover strips.
Benefit: Optimal protection of the construction in the event of snow, ice, wind and excessive heat development.
Safety aspects in detail
- The glazing is watertight and is positively fitted to the cover strips and glazing bars.
- The cover strips have integrated guide rails for mounting fittings, sun protection devices and maintenance equipment.
- The clamp is made even safer through an extended adhesive area.
Isothermal load converter – ITL
Effect: The Isothermal Load Converter channels the load on the Continuous Rooflight into the substructure. Since this frees the base profile from loads and tensions, there is no need for metal material. This allows high-quality composite with excellent thermal insulation values to be used for the base profile.
Benefit: The Isothermal Load Converter (ITL) achieves optimised isothermal lines running continuously through the construction and prevents thermal bridges.
Benefit for optimum energy efficiency
- Excellent Uf values in the base profile and even better thermal insulation
- Improved load bearing capacity in the base profile
- Significantly reduced risk of condensation
- Optimised rebate base ventilation
- Smooth interior with few edges which ensures less dirt and grime
Linear burn-through protection – LBP
Effect: In most cases, the roofing membrane, which is attached to a substructure such as a frame, is pulled up to the upstand and is led under the base profile of the Continuous Rooflight. In the event of a fire inside the building, the roofing membrane on the inside of the upstand will often catch fire and will tend to burn like a “fuse” to the outside of the roof.
Linear Burn-through Protection can be understood as an intelligent system, which restricts the spread of the fire at the roof penetrations. The profile of the Continuous Rooflight plays an important role: It is made of a thermoplastic composite, which softens on the upstand in the event of high temperatures and spreads directly over the burring edge of the roofing membrane. This process seals the burning joints, cutting off the supply of oxygen and extinguishing the flames in the area.
Benefit: The LBP prevents flames from spreading to the roof. Despite it softening at high temperatures, the base profile remains stable during the fire because it is cooled and strengthened by the metal profile of the glazing bead.
LBP – Sophisticated fire protection technology
- Prevents fire from spreading onto the roof through roof penetrations in accordance with specifications in DIN 18232-4
- Patented technology
- No need to place gravel around the Continuous Rooflight
Energy efficiency

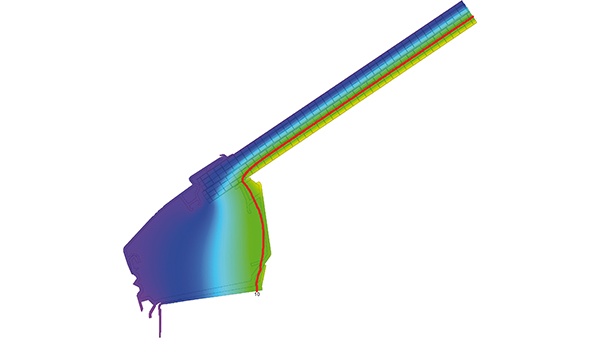

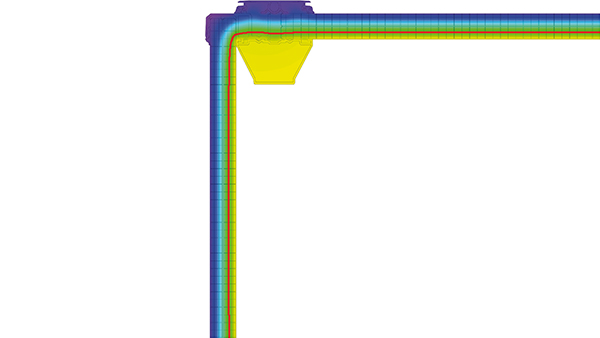

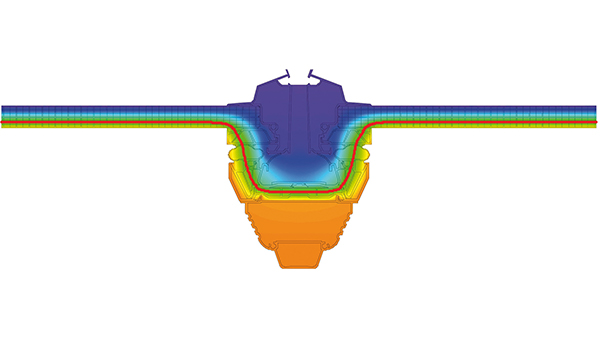

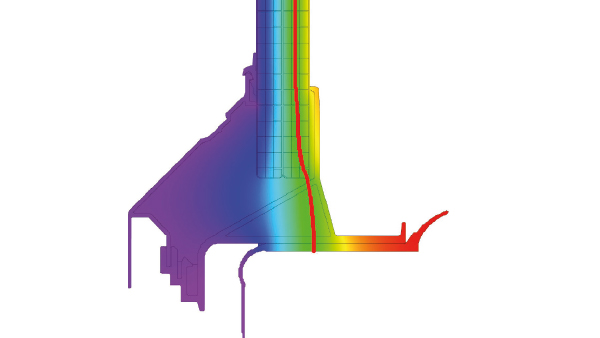

Optimised isothermal lines
In the LAMILUX Continuous Rooflight B, the 10°C isothermal line runs consistently through the entire construction. Our guarantee: A minimised risk of condensation forming on the inside of the construction.
The comprehensive thermal protection technology throughout the construction ensures the best Uw values in the European-approved Continuous Rooflight. The energy efficiency properties have been tested and verified in accordance with ETAG 010. This ensures that the consistent insulation properties in the Continuous Rooflight profile are documented. In the event of an order, the Uw values are calculated on a cost-neutral basis, and this calculation is confirmed with the certificate of quality.

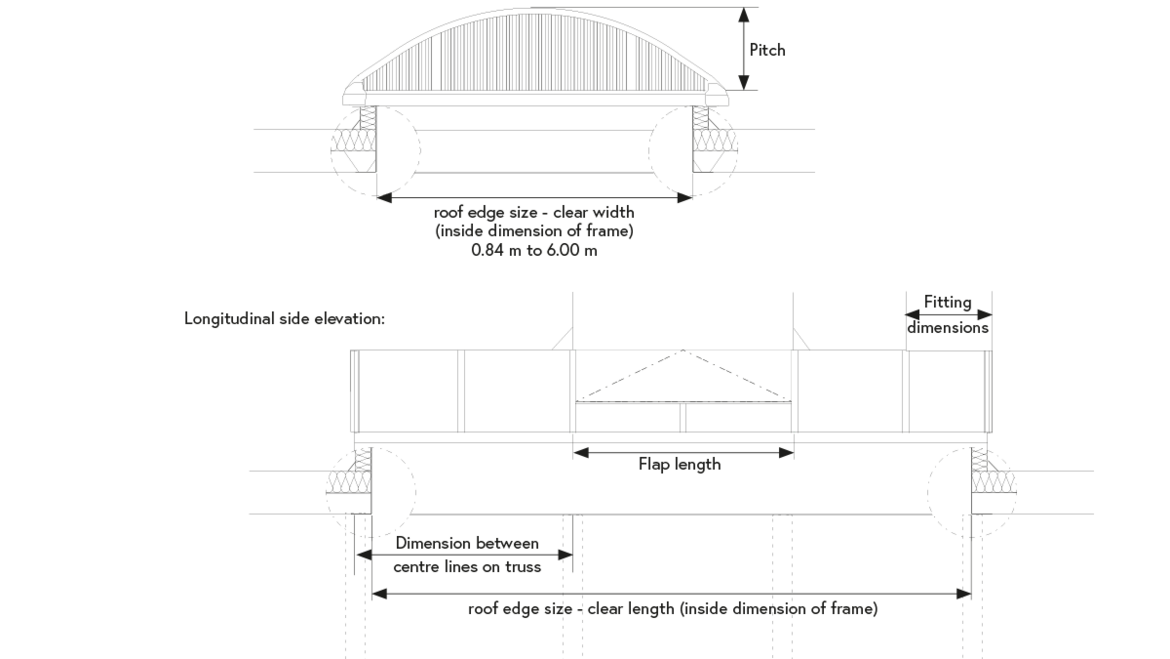

Structural attachment
- Roof mounting variants include mounting on steel sheeting upstands, on wooden trusses or reinforced concrete upstand beams
- Stability is of primary concern with LAMILUX's own steel sheet upstands; LAMILUX complies with the requirements of the German Institute for Building Technology (Deutsches Institut für Bautechnik), according to which sheet steel upstands must be manufactured using high steel grades S 280 GD + Z 275 or S 320 GD + Z 275
- Connection details: Sandwich roof in accordance with IFBS guidelines

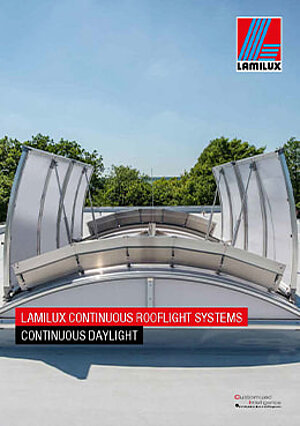

Downloads
