LAMILUX Glass Skylight F100 Circular

Glass Skylight for administrative, educational or residential buildings

Advantages at a glance

Glass Skylight F100 Circular

Energy efficiency

  • Available in double or triple insulating glazing with TSG on the outside and LSG on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.6 W/m²K
  • Structure completely free of thermal bridges with a Uw-value between 1.1 and 0.76 W/m²K, depending on the glazing (as per EN ISO 10077-1)

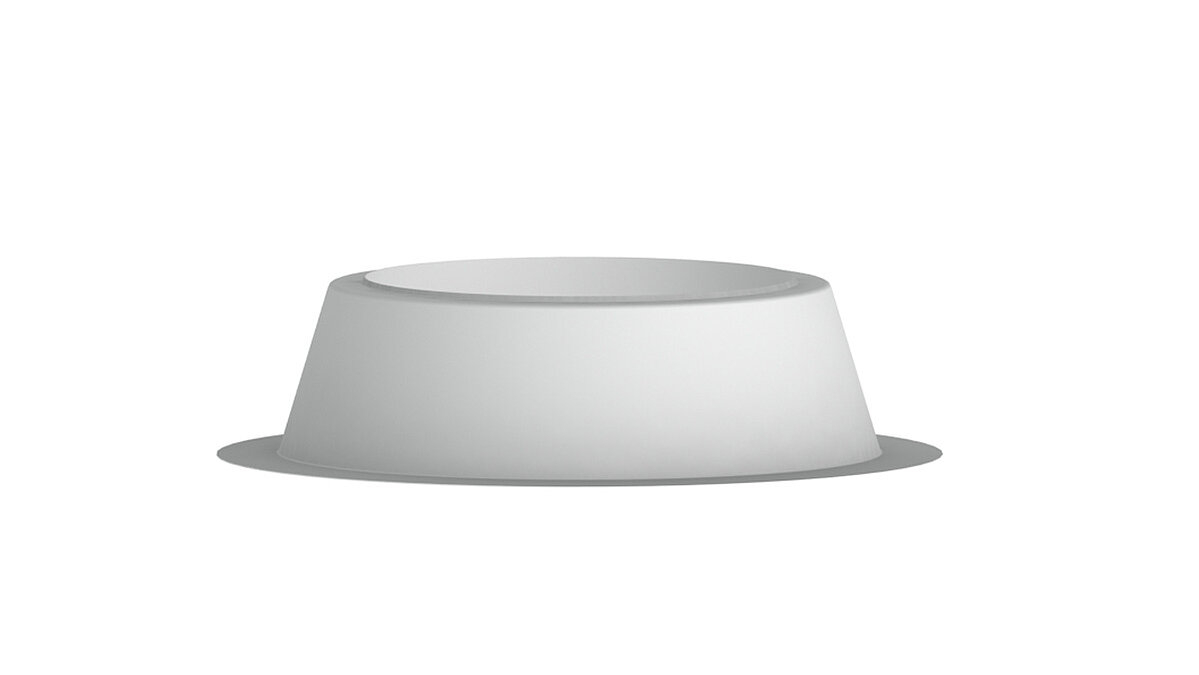

  • Thermally insulated, jointless GRP upstand, with a height of 70, 50 or 30cm with U-values ≥ 0.68 W/m²K
  • Outstanding air-tightness due to the new balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
  • Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight F100 Circular in accordance with DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025

Comfort & Design

  • NEW: Chain drives which are invisibly integrated into the upstand, available – Awarded the German Design Award 2020 in the category Winner

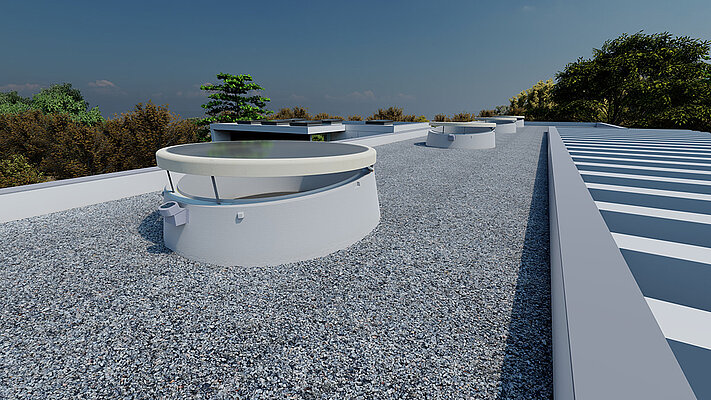

  • NEW: 5° inclined upstands available for an ideal self-cleaning effect
  • Flat drainage surface: The newly designed frame profile provides a smooth transition between the glazing and the border frame, creating an unobstructed drain for rainwater
  • Permanently clear view and generous daylight through scratch-resistant glazing

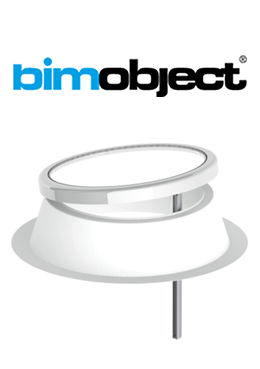

  • Our Glass Skylight F100 Circular is BIM-ready – Download at
  • Generous daylight incidence and lasting clear views due to scratchproof glazing
  • White, silk-matt appearance inside – no additional drywall construction required


  • Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1950)
  • Very high load-bearing capacity due to optimised profiles
  • Approved fall-through protection
  • Excellent stability under wind and snow loads
  • UV-resistant edge bond


  • The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
  • Condensation resistant between glass panels due to thermally decoupled edge bond, unlike plastic domes
  • Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
  • Can be used as an SHEV system in staircases
  • Delivery of Glass Skylight F100 completely pre-assembled on the upstand

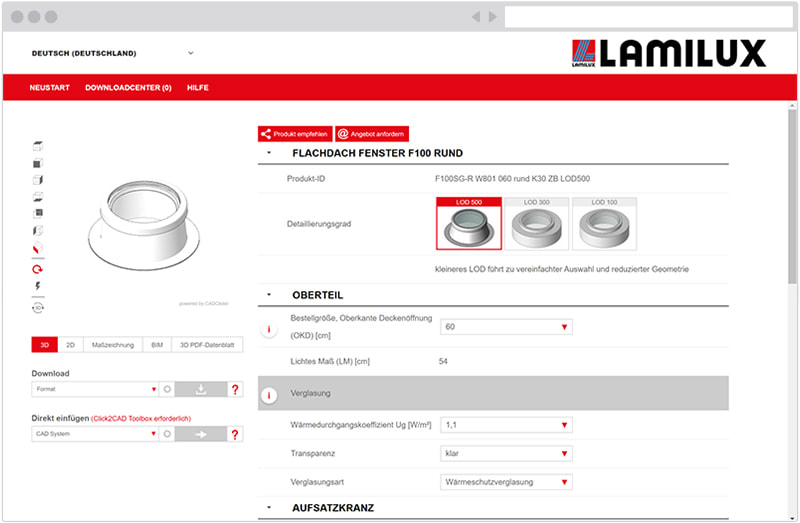

Product configurator

Create an individual product variant, guided by a dynamic dialog with 3D preview in real time. Then share, request with one click or download BIM objects, 2D and 3D CAD models, images, dimensional drawings or data sheets in the desired file format.

Highlight for all planners

With BIM or without – the PDF data sheet with all technical properties including active 3D model, dimensional drawing and link back to configuration is the ideal all-in-one document of your desired product variant. Generate it yourself now 24/7.

The variants

Glass Skylight F100 Circular

Glazing types

Available Sizes

Order sizes (top roof edge size Ø)
60 cm120 cm
80 cm150 cm
90 cm180 cm
100 cm



Glass Skylight F100 Circular

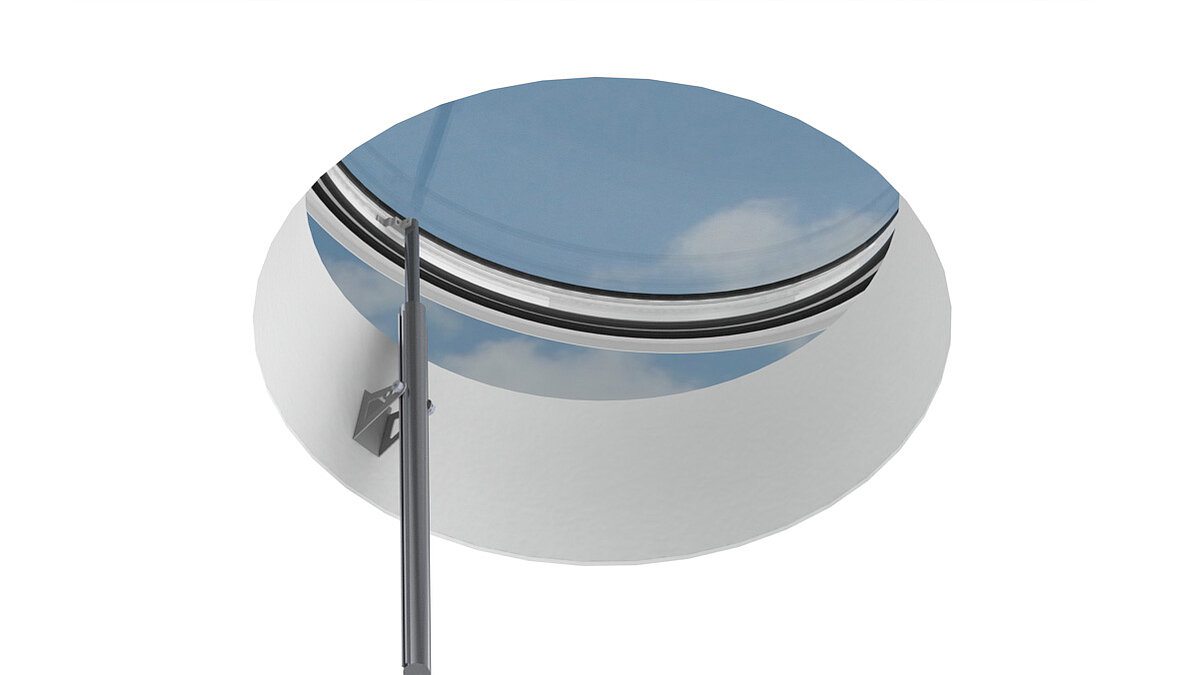

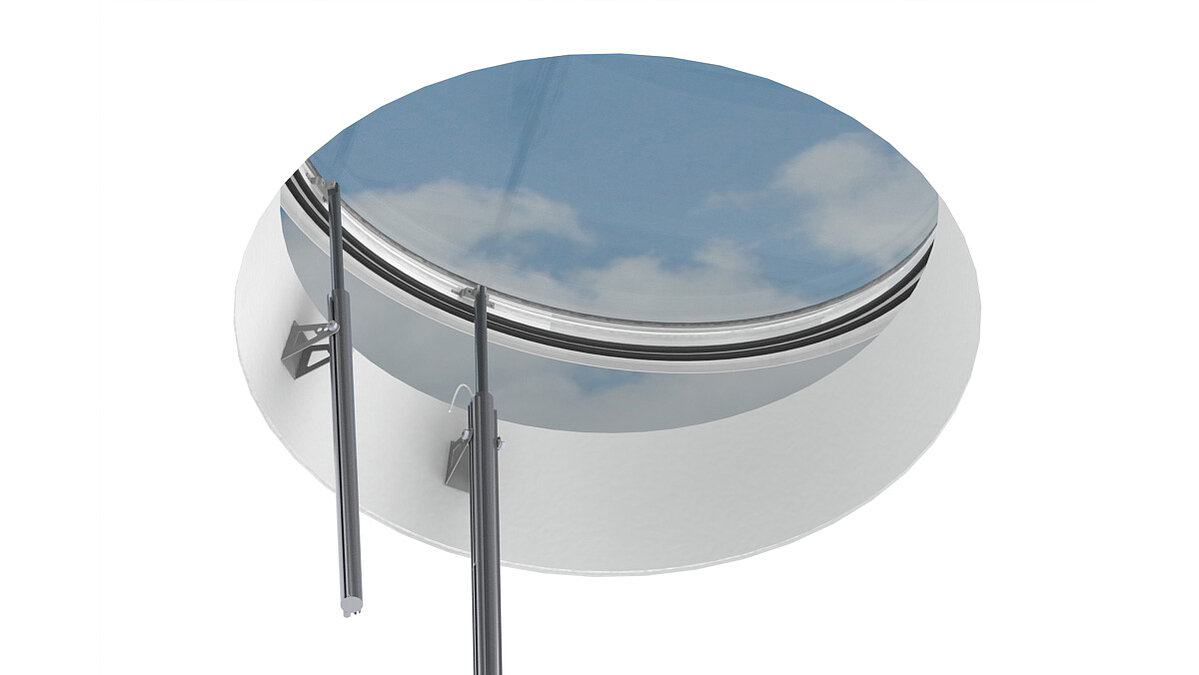

Ventilation Units

Technical Details

Glass Skylight F100 Circular

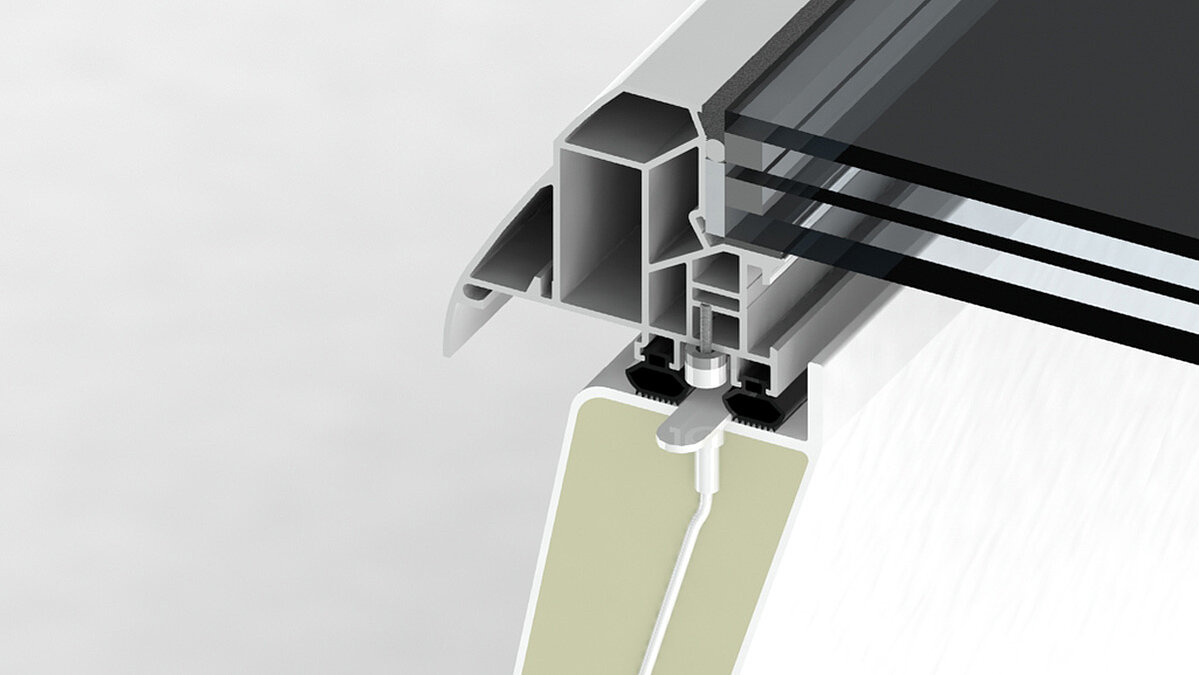

Design details

1 - Flat drainage surface: The unique frame profile provides a smooth transition between the glazing and the border frame, creating an unobstructed drain for rainwater

2 - Structural glazing design

3 - Thermally optimised PVC border frame

4 - Outstanding, certified airtightness thanks to the balloon double-sealing system

5 - Heat-insulated upstand made of glass-fibre reinforced composite: Manufactured without joints and (optionally) with a continuous insulation core made of PU foam, 50 mm thick;
Optional ventilation drives concealed in the upstand

Energy Efficiency

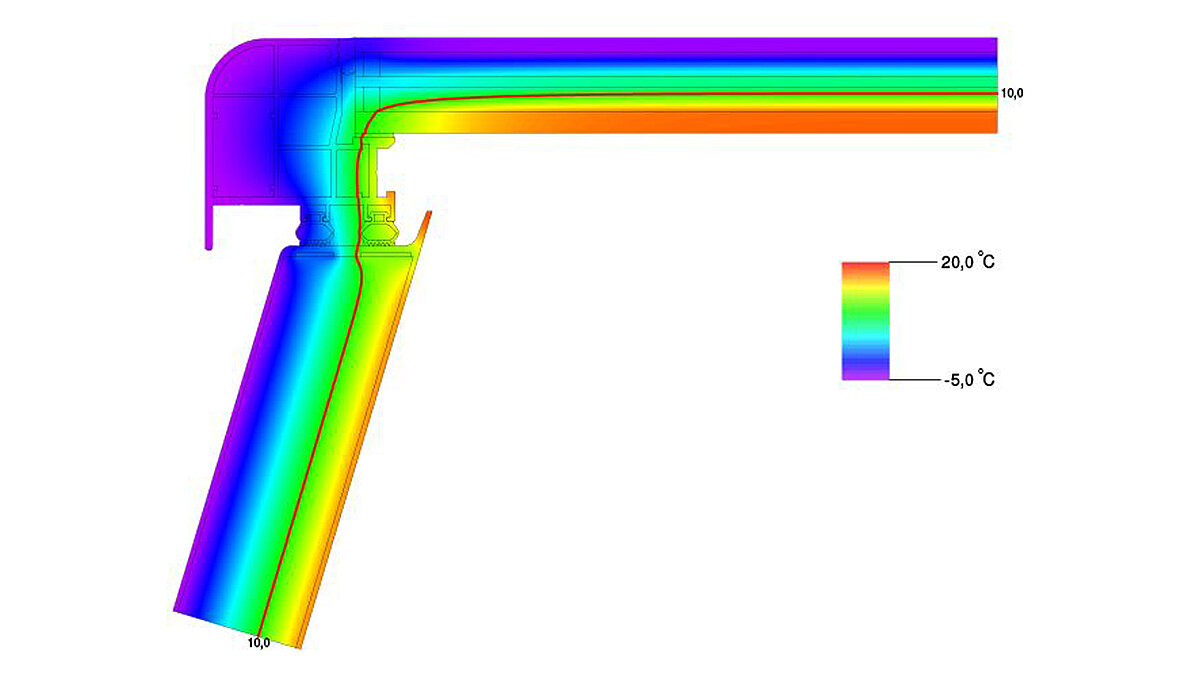

Isotherms – thermal protection made visible

Optimised isothermal lines for consistent thermal insulation zones without any weak spots provide superior thermal protection in all sections throughout the structure, presenting evidence of optimum energy efficiency. LAMILUX calls this thermal bridge-free product concept

TIP – Total Insulated Product

The Glass Skylight F100 offers complete and optimal thermal protection in a single compact unit that is free of thermal bridges. The Uw-value of 1.3 to 1.0 W/m²K is calculated according to EN ISO 10077-1 for a reference element with Ø 120cm and is dependent on the type of glazing selected.


Glass Skylight F100 Circular

Glass Skylight F100



Download collection


Glass Skylight F100 Circular

BIM Download

cz, en-us-gb, fr, nl, pl, ru

Glass Skylight F100 Circular

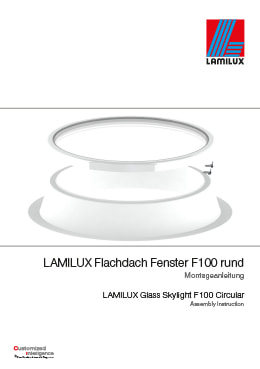

Assembly instruction


Download collection


Glass skylight



Download collection


LAMILUX Glass Skylight F100 | FE | FE Passivhaus | Smoke Lift ME

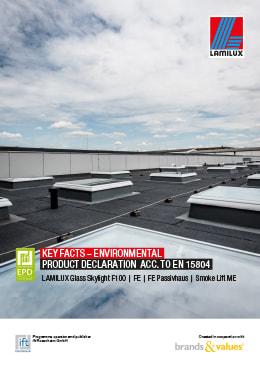

Environmental Product Declaration


Download collection
