LAMILUX Glass Roof PR60 Passivhaus

Shaping the future of sustainable construction with new technologies


Benefits at a glance

Glass Roof PR60 Passivhaus


Energy efficiency

  • First sloped glazing certified to Passivhaus standard
  • Highest Passivhaus efficiency class – phA advanced component
  • Heat transmission coefficient (UCWi) is 0.81 W/(m²K)
  • Optimum solar gains
  • Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2
  • Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Roof PR60 Passivhaus in accordance with ISO 14025 and EN 15804 (EPD – modules A1 - D)

Made-to-order

  • Custom-made mullion-and-transom building systems in real glass for creative roof architecture in all sizes and shapes (any inclination angle infinitely variable)
  • RAL colour of your choice (optional)

Stability and safety

  • General Building Approval for the system
  • The system bears the DVS quality seal and is certified according to DIN EN 1090-3
  • Optimum stability for architectural design freedom
  • Watertightness, air permeability and resistance tested to DIN EN standards
  • Torsion-resistant supporting structure made of premium quality aluminium with integrated screw channel
  • Secondary water drainage in the inner sealing level – interior aluminium construction does not get in contact with water
  • Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
  • Optional use of a laser grid as fall-through protection when the NSHEV is open

Technical details

Glass Roof PR60 Passivhaus

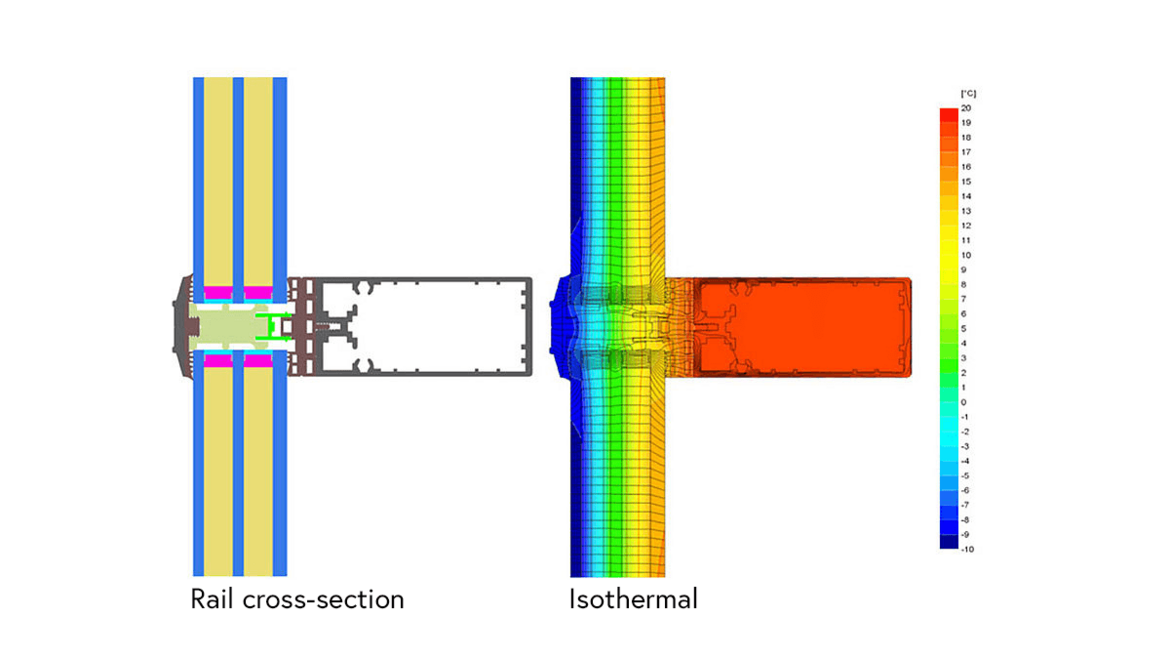

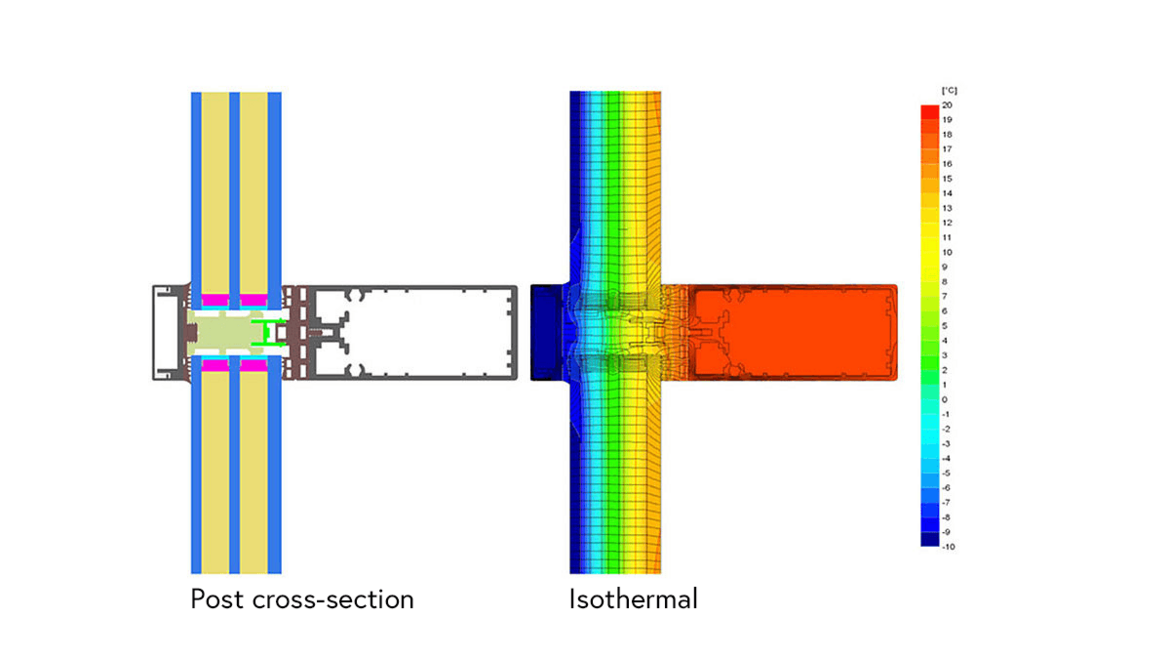

Comfort and technology

The intelligent use of highly efficient materials limits the minimum surface temperature on the inside of glass constructions, thus preventing condensate and mould formation.

Mould grows on surfaces at a relative humidity of just 80 percent or higher. When the indoor temperature is 20°C and relative humidity is 50 percent (standard conditions), this corresponds to a surface temperature of 12.6 °C.

Such data is used to calculate the fRsi-value, a coefficient that indicates the likelihood of mould growth. If this value is less than 0.7, there is a risk of mould formation.

For the Glass Roof PR60 Passivhaus this value is a stable 0.79. This corresponds to a minimum surface temperature of 14.8 °C, which is an ideal temperature to ensure comfort and energy savings.

Energy efficiency
