Firefighter

Safety through automatic smoke extraction


In addition to its use as a SHEV system, the FIREFIGHTER can be used for daily ventilation and is designed to withstand extreme weather conditions. The application range of the FIREFIGHTER double or single flap results from the combination of its properties and extends from natural ventilation and automatic fire ventilation to room illumination with daylight.
Particularly when combined with the EUROLIGHT lighting system from roda, the FIREFIGHTER ensures uniform daylight, optimum air conditions through natural ventilation and safety in the event of fire through timely, automatic fire ventilation.

areas of application

Because the FIREFIGHTER can also be filled with glass, it is suitable for use in public buildings where people are supposed to enjoy a clear view of the sky. The fact that insulating glass has a significantly lower noise level when it rains can also be seen as a strong argument for picking the FIREFIGHTER. The high-quality design, with the possibility of achieving very high sound insulation values, also qualifies it for special purposes such as theatres or cinemas.

In general, the single or double flap is used in the following areas of application:

  • Flat roof
  • Ridged roof
  • Pitched roof
  • Pitched skylight strip
  • Saddle skylight strip
  • Shed roof

The same requirements are placed on the system as on the roof itself, e.g. in terms of moisture, thermal insulation, wind power, snow loads, sound insulation or energy savings. Depending on the design, the systems meet the requirements of DIN EN 12101-2 and VdS 2159. The EC declaration of conformity is delivered together with the product.

Advantages of the product

Why Firefighter?


  • Bespoke adaptation to every building for roof openings up to 4.75m²
  • Use for daily ventilation
  • Full ventilation with ventilation position 90°
  • High sound insulation up to 54 dB (special design with duct silencer)
  • Reduce the risk of condensation water by thermal separation according to DIN 4108
  • Testing of the stable design and the high quality of the materials used through endurance tests with 10,000 opening and closing operations
  • Good aerodynamic efficiency
  • Low U-values and low clearance losses
  • Suitable for high snow and wind suction loads
  • Delivery also with dark flap
  • Hinges made from cast aluminium parts
  • Drives connected via Teflon-coated bronze bushes and stainless steel bolts, therefore maintenance-free
  • Efficient rainwater drainage via central gutters
  • Completely silicone-free unit with EPDM seals

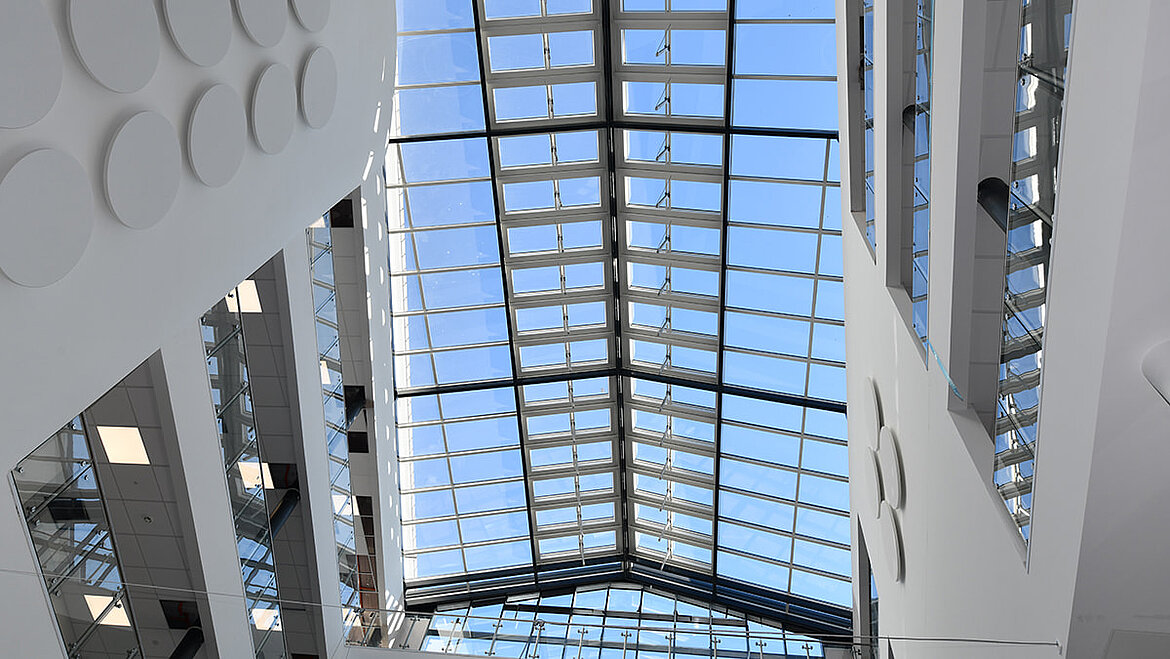

Doppelklappe von roda - Innenansicht

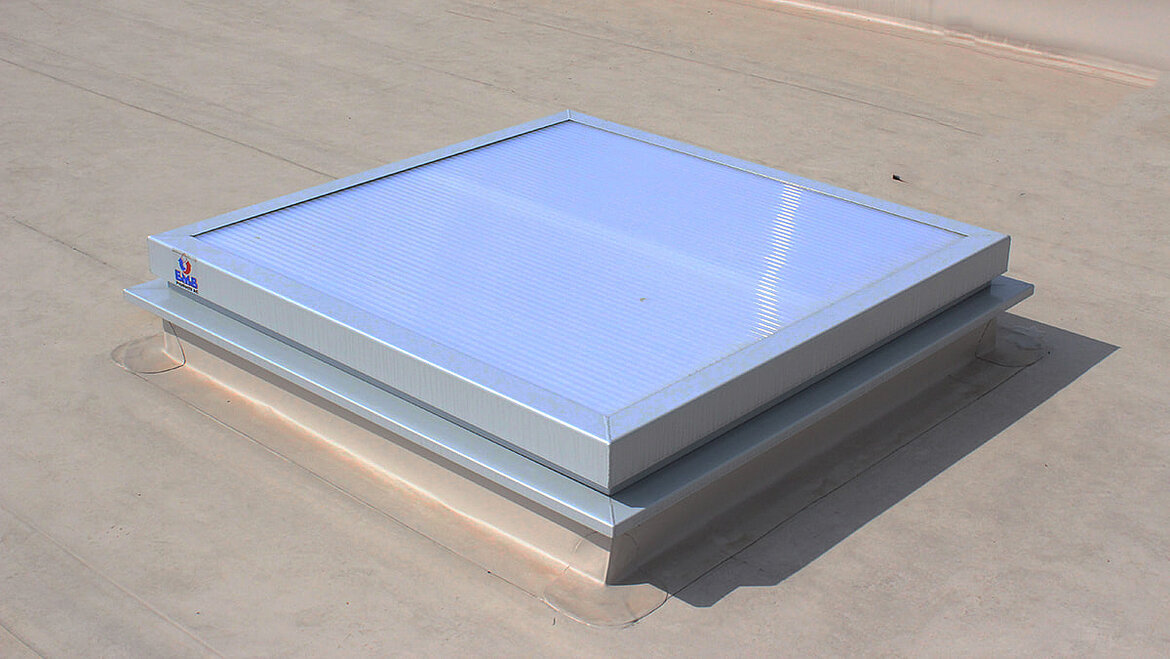

Doppelklappe von roda - Außenansicht

Technical details of the product

Firefighter


Designs

The FIREFIGHTER from roda is available in the versions MONO as a single flap and DUO as a double flap with flat hoods and DELTA as a double flap with hoods at an inclination of 30°. The single or double flap is optionally available in a thermally separated design according to DIN 4108, which is achieved by rolled-in polyamide webs. In addition to aluminium and PC multi-wall panels, the FIREFIGHTER can also be fitted with insulating glass. Frame and hood frame are made of extruded aluminium alloy AlMg Si05.
The hoods are opened and closed by means of compressed air via two pneumatic cylinders with end position locking in both positions. Vulcanised EPDM profile seals ensure tightness. Our products are made to your specifications and can be fully adapted to the conditions on site.

Doppelklappe von roda Mono

Firefighter Mono

  • Single flap system with flat hood
  • Variant 22: not thermally separated
  • Variant 33: thermally separated
  • Ideal for saddle and shed roofs
  • Size: 500 x 1000 mm to 950 x 2500 mm
Doppelklappe firefighter duo von roda

Firefighter Duo

  • Double flap system with flat hoods
  • Variant 22: not thermally separated
  • Variant 33: thermally separated
  • Size: 1000 x 1000 mm to 1900 x 2500 mm
Doppelklappe firefighter delta von roda

Firefighter Delta

  • Double flap system with hoods at a 30° inclination
  • Thermally separated
  • Optimal water drainage due to the inclination of its flaps
  • Size: 1000 x 1000 mm to 1500 x 2500 mm

Sizes

Our units are manufactured according to customer requirements and can be customised to all types of building. The FIREFIGHTER units are available in all lengths and widths from 1000 x 1000 mm up to 1900 x 2500 mm. In the individual designs, length and width dimensions are possible up to the following sizes:

Firefighter Mono

  • With pneumatic control: From 500 x 1000 mm to 950 x 2500 mm
  • With electrical control: From 500 x 1000 mm to 875 x 2500 mm

Firefighter Duo

  • With pneumatic control: From 1000 x 1000 mm to 1900 x 2500 mm
  • With electrical control: From 1000 x 1000 mm to 1749 x 2500 mm

Firefighter Delta

  • With pneumatic and electric control: From 1000 x 1000 mm to 1500 x 2500 mm

Furthermore, depending on the location and requirements, the most suitable variations can be selected. Especially in relation to different:

  • Base connection
  • Flange design

Hood designs

The single flap FIREFIGHTER MONO and the double flap DUO from roda are available as non-thermally separated variant 22 or as thermally separated variant 33.

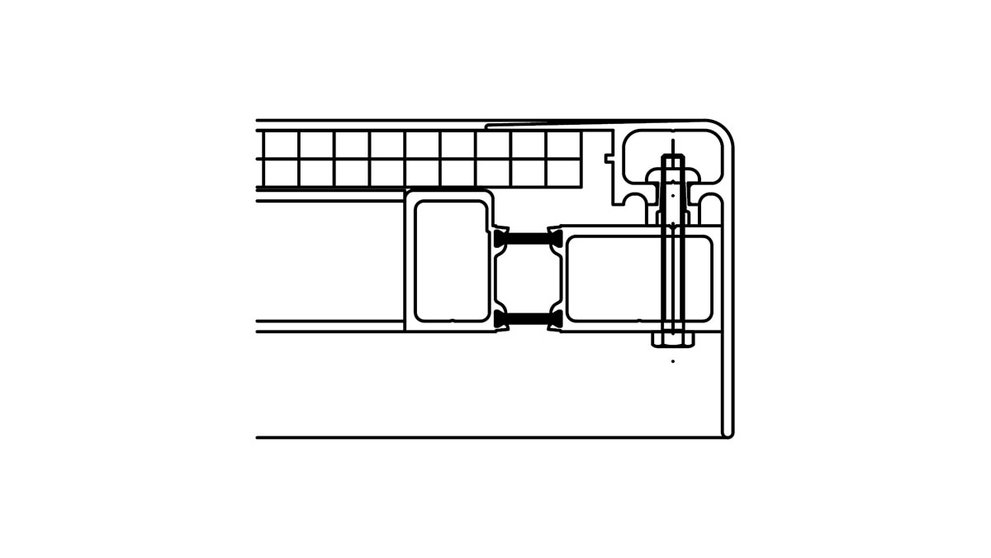

Double flap firefighter variant 22

Hood designs for variant 22

  • PC-HKP-16 mm polycarbonate clear (with Lumira™ insulation on request), opal, opaque or Softlite
  • Different laminated safety glass and other types of glass available on request (fire protection class A1)
  • A2 – double-walled aluminium (50 mm insulated)

Double flap firefighter variant 33

Hood designs for variant 33

  • PC-HKP-16 mm polycarbonate clear (with Lumira™ insulation on request), opal, opaque or Softlite
  • Different laminated safety glass and other types of glass available on request (fire protection class A1)
  • A2 – double-walled aluminium (50 mm or 70 mm insulated)

Glazing types

  • PC 16 mm polycarbonate clear (with Lumira™ insulation on request), opal, opaque or Softlite
  • Different laminated safety glass and other types of glass available on request (fire protection class A1)
  • 50 mm insulated double-walled aluminium or 70 mm insulated (thermally separated)
  • Aluminium/steel/aluminium multi-wall combination with 70 mm insulation for soundproofing
  • Glazing up to PC 32mm polycarbonate in various designs possible


Accessories

Firefighter


The FIREFIGHTER double flap from roda can be equipped with accessories on customer request, which bring further efficient advantages for the operator.

Double flap firefighter - fall through protection

Fall-through protection grating

  • Ensuring the required fall-through safety
  • Maximum size: 1300 x 2500 mm
  • Mesh width: 100 x 100 mm
Double flap firefighter - insect protection

Insect protection grating

  • Ideal for industries with stringent hygiene regulations
  • Easy cleaning during operation
  • Optionally as drawer
Double flap firefighter - Glare protection

Glare protection

  • Avoidance of glare
  • Material: Aluminium
  • Material thickness: 0.6 mm
  • Comb size: 15 x 15 mm
  • Web height: 30 mm
  • Anti-glare angle of 63°

Downloads

for more information


Firefighter

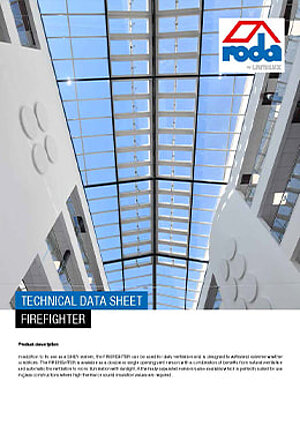

Technical data sheet
