LAMILUX Smoke Lift Glass Roof PR60​
free design language becomes reality

Smoke Lift Glass Roof PR60​

Preventive fire protection


Smoke and heat exhaust ventilation units (SHEV units) are essential components in any fire-protection concept. These life-saving, asset-protecting systems are compulsory requirements for “preventive fire protection”. We provide for a whole range of requirements, tailored to your project's needs:
Open-only, open/ close, pneumatic, 24V, 230V; certified to EN 12101-2, SHEV designed and dimensioned in accordance with DIN 18232-2, regional building regulations and industrial construction guidelines – for rooflight domes, opaque flaps, individual flaps, continuous rooflights, glass roof constructions, staircases, elevator shaft smoke extraction and wall glazing.

Product description

Glass roof SHEV unit


The benefits

The smoke and heat exhaust ventilation system comprises a thermally separated flap system, and a pneumatic or electric SHEV triggering component; it can be fitted with a surface inclination of between 2° and 90°.

  • EN 12101-2 approved
  • Fully adjustable flap width and height
  • Perfectly suited for renovation work as it can be easily installed into other systems
  • Choice between pneumatic and 24V electric motor drive
  • Ventilation function electric or pneumatic (depending on flap system: fair weather and/or normal ventilation)
  • Maintenance-friendly, as the thermally automatic release of individual devices remains intact in the event of remote triggering or false alarm
  • Optional: RAL coating possible
  • Optional: Sun protection with deciduous tree effect available
  • Optional: Sun protection integrated into the glazing

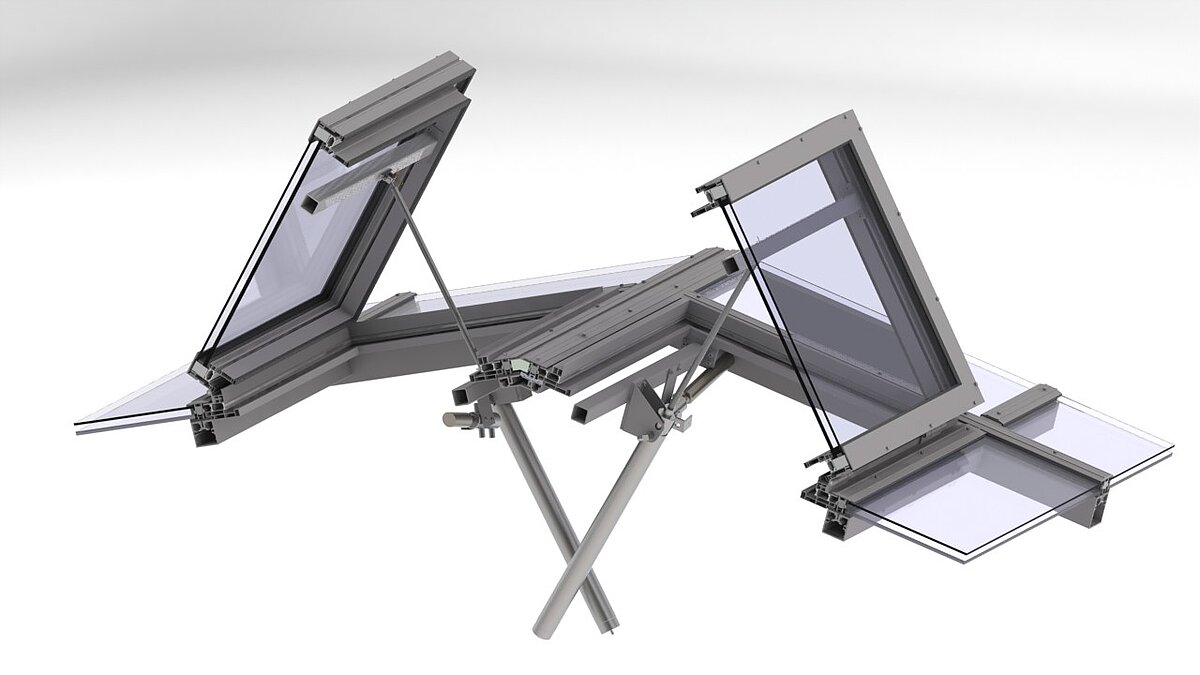

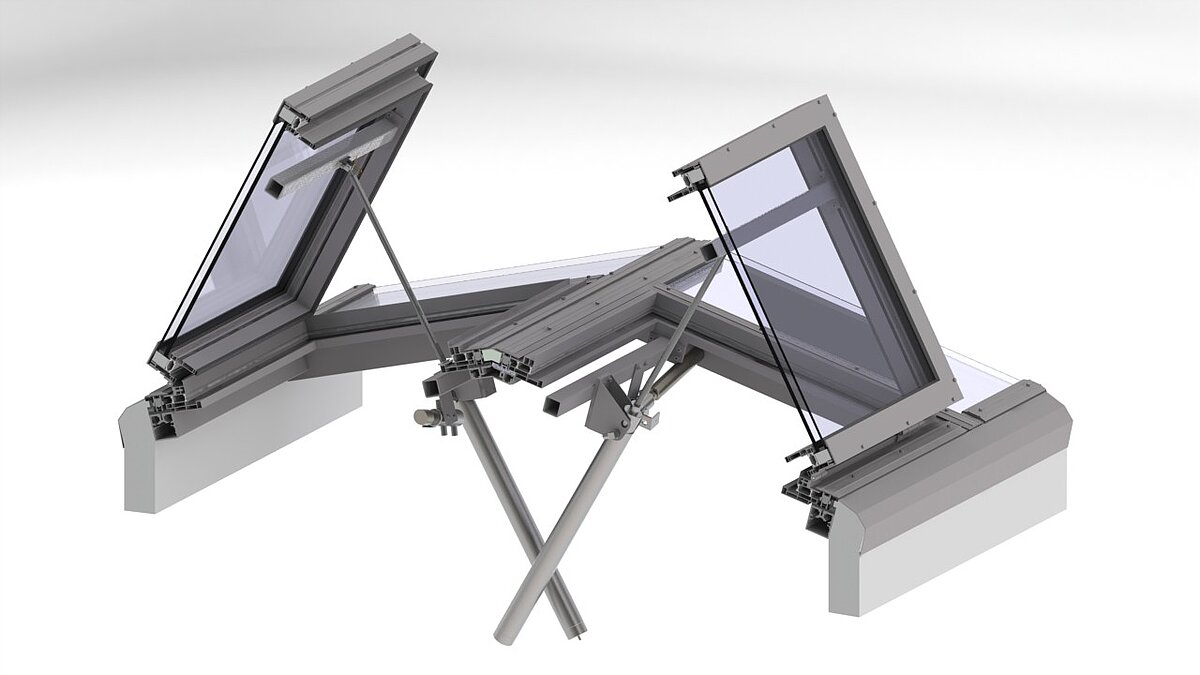

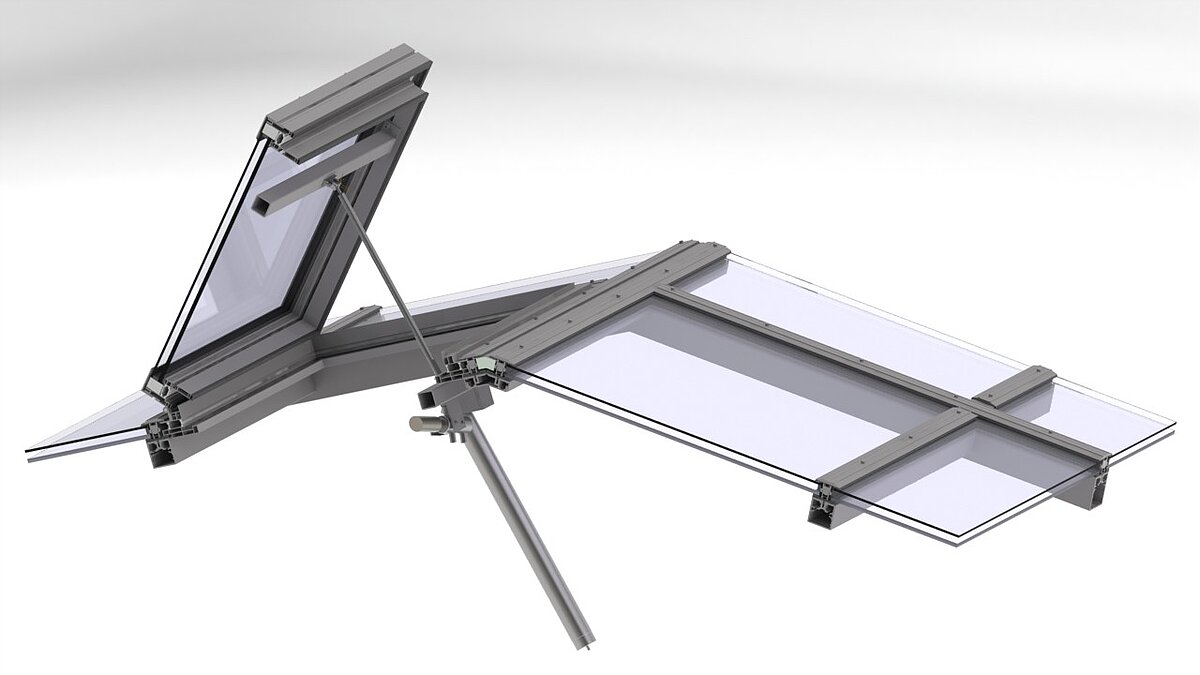

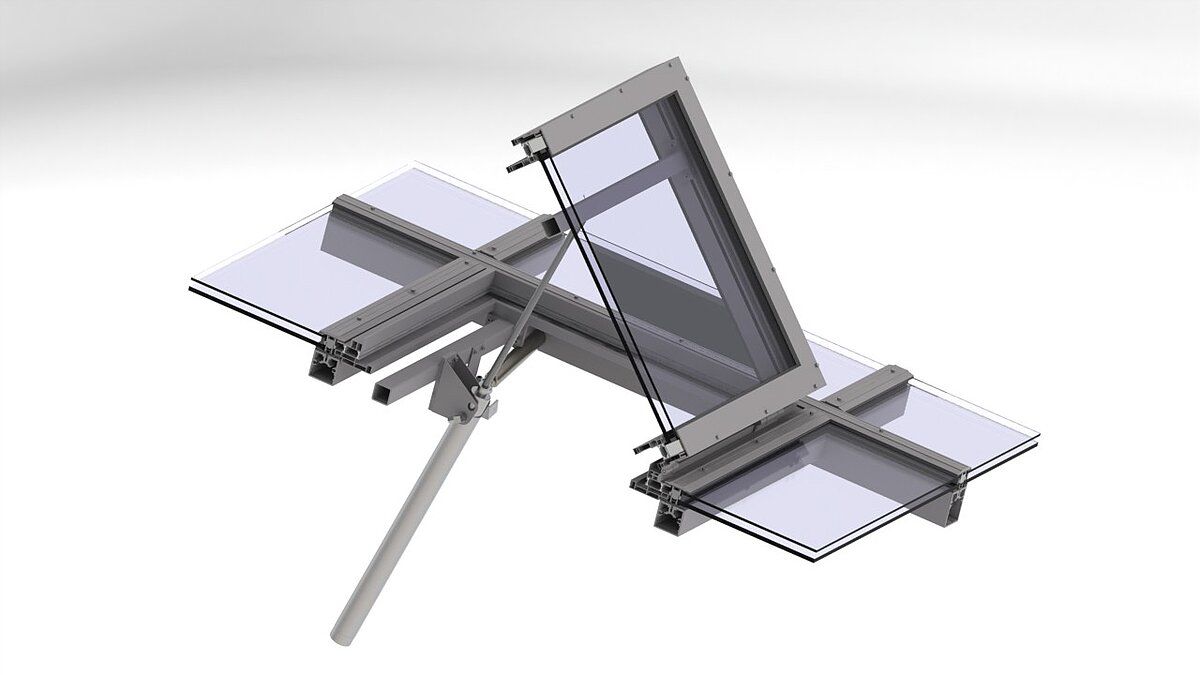

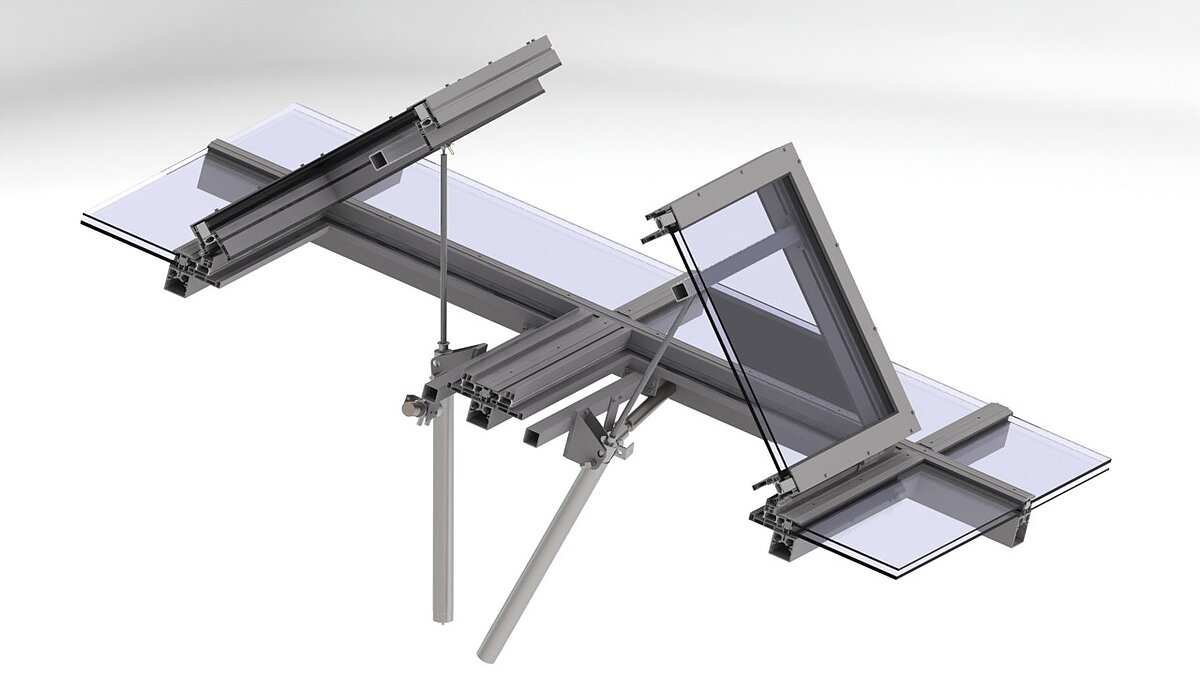

  • Possible as a single flap or double flap design

Glazing variants – Smoke Lift Glass Roof PR60

  • Function: SHEV open, SHEV open/ closed, fair weather ventilation
  • Flap design: Installation at any angle between 0° and 90°
  • Resistance against wind load (Class C4/B5 EN 12210)
  • Tightness against driving rain (Class E, 1200 EN 12208)
  • Thermal protection (Ug-values of 1.7 to 0.6 W/(m²K) EN 673)
  • Total energy transmission (g between 18 and 78 percent)
  • Air permeability (Class 4, EN 12207)
  • Light transmittance (Lt between 19 and 82 percent)
  • Sound insulation (EN ISO 140-3 up to 45 dB)

Technical details

Glass roof SHEV unit

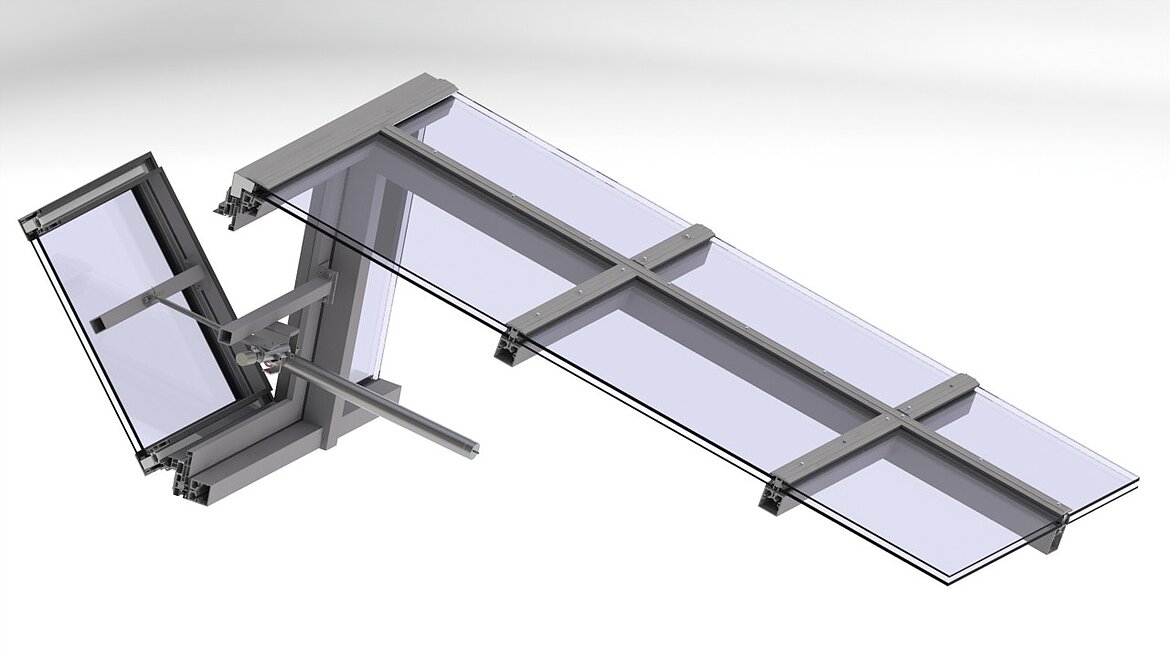

Installation situation
