LAMILUX Flat Roof Access Hatch Service FE
For the effortless access to technical roofs
All benefits at a glance
LAMILUX Flat Roof Access Hatch Service FE
Application
- Secure access to technically used flat Roofs

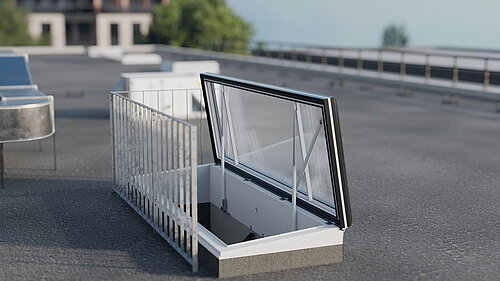

- Roof access hatch for maintenance on roofs with green roofing, photovoltaic systems and ventilation technology

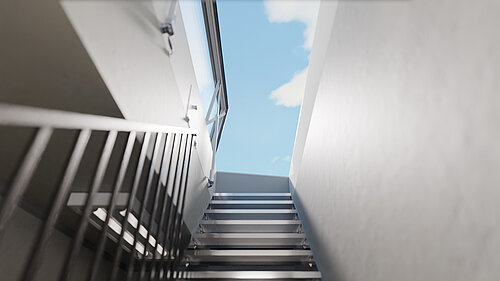

- Spacious roof access in combination with an on-site straight staircase
- Flexible use on industrial, residential and public Buildings
- Various glazing options for every application
Safety
- Driving rain tightness in accordance with DIN EN 1027 Class E
- Complies with the Machinery Directive in accordance with CE
- Resistance to wind load in accordance with DIN EN 12211 Class C5
- Fall-through safety in the closed position in accordance with DIN 18008-6
- Air permeability in accordance with DIN EN 1026 Class 4
- Complies with DIN EN 12978 “Doors and gates – Safety devices for power-operated doors and gates”
Design
- Generous dimensions: 90 × 250 cm or 90 × 300 cm
- High-quality design for maximum daylight Ingress
- Top section in traffic white inside and out, optionally anthracite on the outside
- 5° inclination for reliable water drainage and reduced soiling
- Continuously adjustable opening up to 80° within 60 seconds
- Opening via two electric drives or battery pack – also during power failures
Energy Efficiency
- Thermally broken, high-strength aluminium composite system
- Continuously insulated core composite Zone
- Peripheral double sealing system
The equipment variants

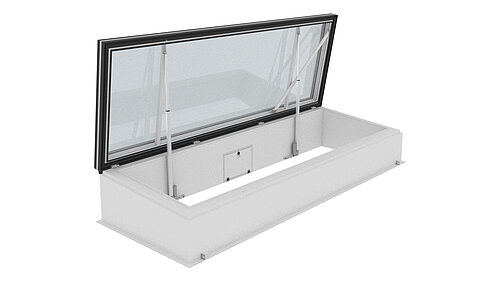

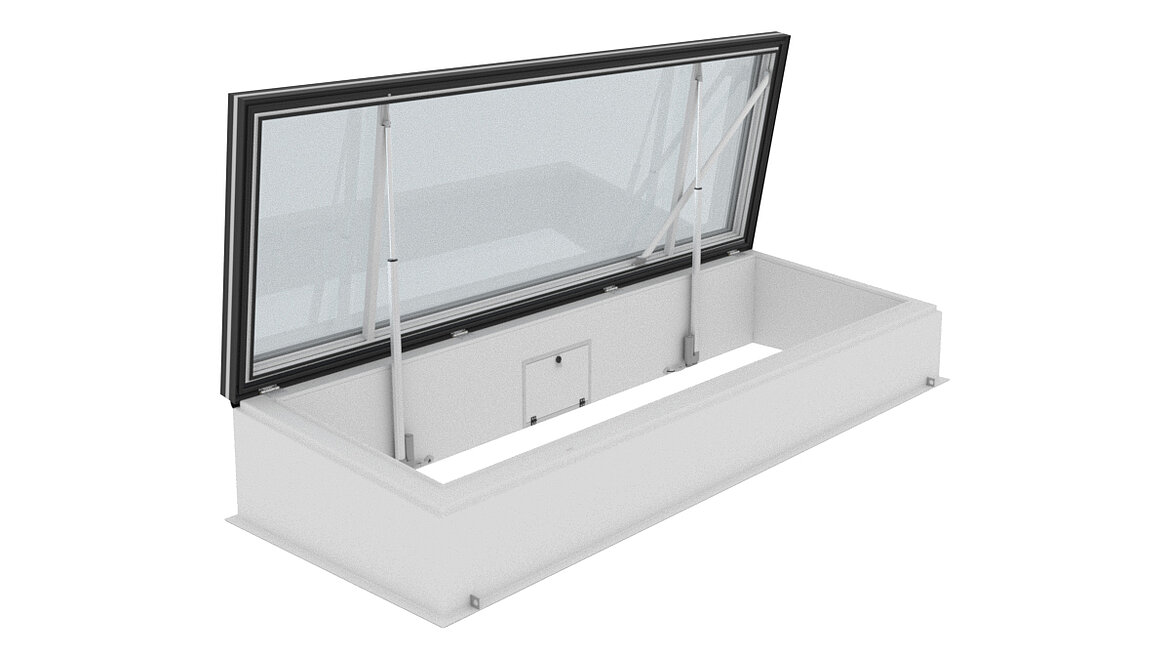

LAMILUX Flat Roof Access Hatch Service FE
Glazing Types
| Glazing | Ug-value | Sound insulation | Light transmittance | Energy permeability |
|---|---|---|---|---|
| Heat insulation glazing W110 | 0,6 W/(m²K) | 39 dB | 72 % | 51 % |
| Heat insulation glazing with matt film W303 | 0,6 W/(m²K) | 39 dB | 49 % | 50 % |
| Solar control glazing S117 (60/30) | 0,6 W/(m²K) | 39 dB | 55 % | 30 % |
| Solar control glazing with matt film S118 (60/30) | 0,6 W/(m²K) | 39 dB | 37 % | 29 % |
| Solar control glazing S121 (50/25) | 0,6 W/(m²K) | 39 dB | 45 % | 25 % |
| Solar control glazing with matt film S122 (50/25) | 0,6 W/(m²K) | 39 dB | 31 % | 24 % |
| Solar control glazing S125 (70/37) | 0,6 W/(m²K) | 39 dB | 62 % | 34 % |
| Solar control glazing with matt film S126 (70/37) | 0,6 W/(m²K) | 39 dB | 42 % | 33 % |
Sun protection

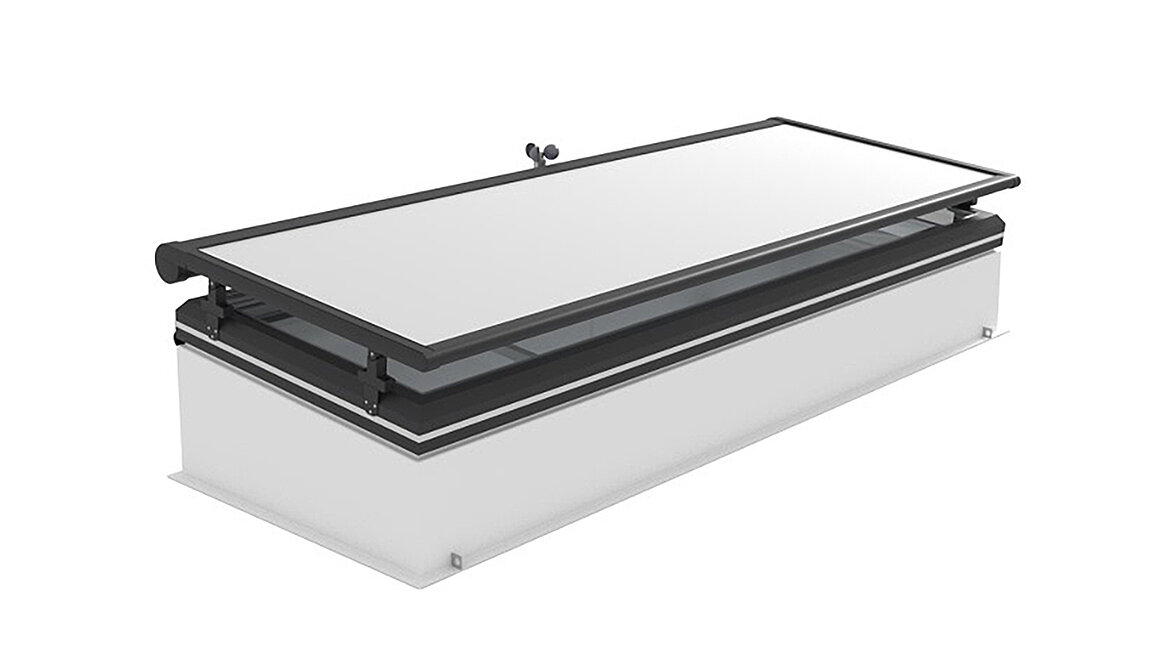

Natural daylight and solar heat can be used as valuable energy sources for buildings, helping to reduce both heating and artificial lighting costs. However, this energy must be carefully controlled. Adjustable shading systems make this possible. The external shading system for the LAMILUX Flat Roof Access Hatch Service FE is designed precisely for this purpose.
Opening Drives
The leaf is opened continuously and smoothly by electrically driven actuators positioned on each narrow side. The drives are controlled via a key switch with a dead man's function to ensure safe operation. Due to the maximum opening angle of approximately 80°, a projected opening width of about 799 mm is achieved. In normal operation, the Flat Roof Access Hatch is supplied with 230 V mains voltage, which also automatically charges the integrated batteries. In the event of a power failure, the system automatically switches to battery operation. The battery capacity is sufficient for approximately 20 opening cycles of the leaf.
Upstand
