LAMILUX Smoke Lift Glass Skylight F100
Safety and comfort for living and work areas
Product description

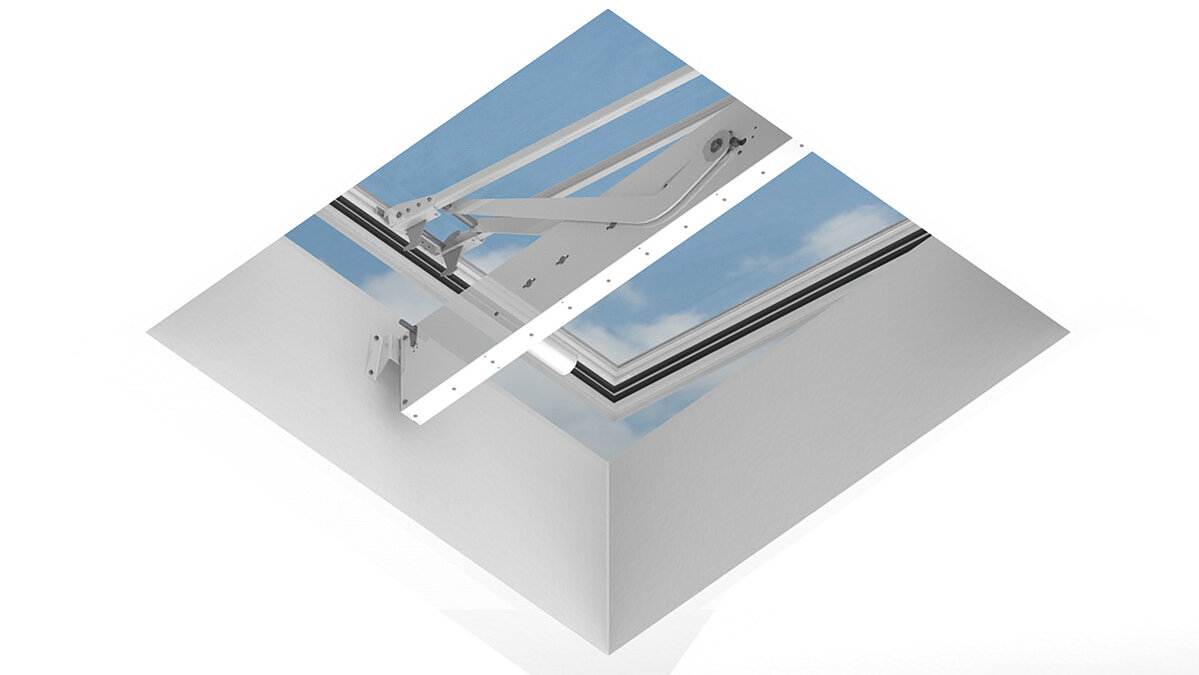

Smoke Lift Glass Skylight F100
The newly developed Smoke Lift Glass Skylight F100 unites the advantages of the Glass Skylight F100 with those of an electric SHEV as per EN 12101-2.
In addition to exceptional thermal insulation and an appealing design, this SHEV system (available in 24V or 48V) offers safety and comfort for living and working spaces.
Benefits at a glance

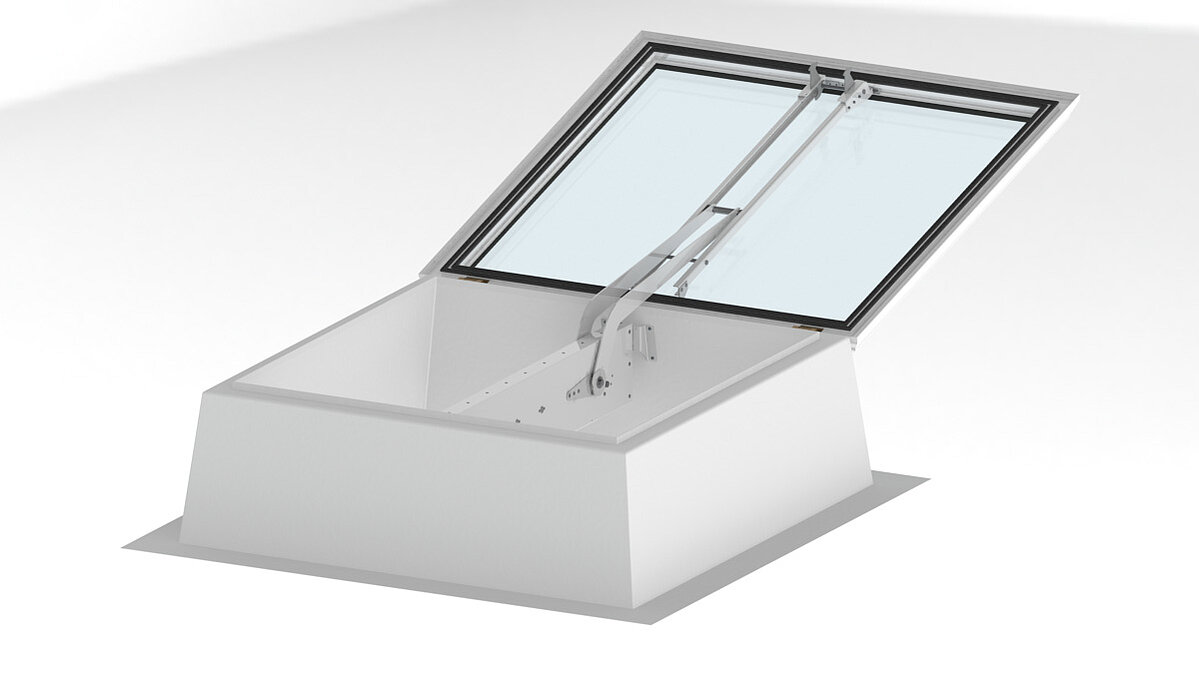

- Fast opening (165°) in under 60 seconds
- Permanent fall-through proof
- Multi-stage ventilation fitted as standard
- Easy closing after false tripping/ maintenance-friendly
- Hard roofing, non-flammable
- Open/ close featured as standard
- Available sizes: up to 150/150
- Variety of glazing types: Double or triple thermal insulation glazing (Ug up to 0.95 W/(m²K); optional: matt, light-coloured film
- Easy to install: Bolt-free, tool-free, self-explanatory
- Structure completely free of thermal bridges with a Uw-value between 1.45 and 1.07 W/(m²K), depending on the glazing (as per EN ISO 10077-1 for a reference element measuring 120 x 120 cm)
- Thermally insulated, joint-free GRP upstand, 30, 40 or 50cm in height, with U-values between 0.5 W/(m²K) and 0.9 W/(m²K)
Test values according to EN 12101-2
Sizes and values
Smoke Lift Glass Skylight F100
| Aa-values (m²) Inclined upstand | Aa-values (m²) Steep upstand with spoiler | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Order size (cm) | 24V /48V - solo | 24V /48V - tandem | 24V /48V - solo | 24V /48V - tandem | |||||||
| 100/100 | 0.60 | - | - | - | |||||||
| 100/150 | 0.90 | - | 1,08 | - | |||||||
| 120/120 | 0,88 | - | 1,02 | - | |||||||
| 120/150 | 1,21 | - | - | - | |||||||
| 125/125 | 0,97 | - | - | - | |||||||
| 140/140 | 1,22 | - | - | - | |||||||
| 150/150 | 1,42 | 1,35 | - | 1,58 | |||||||

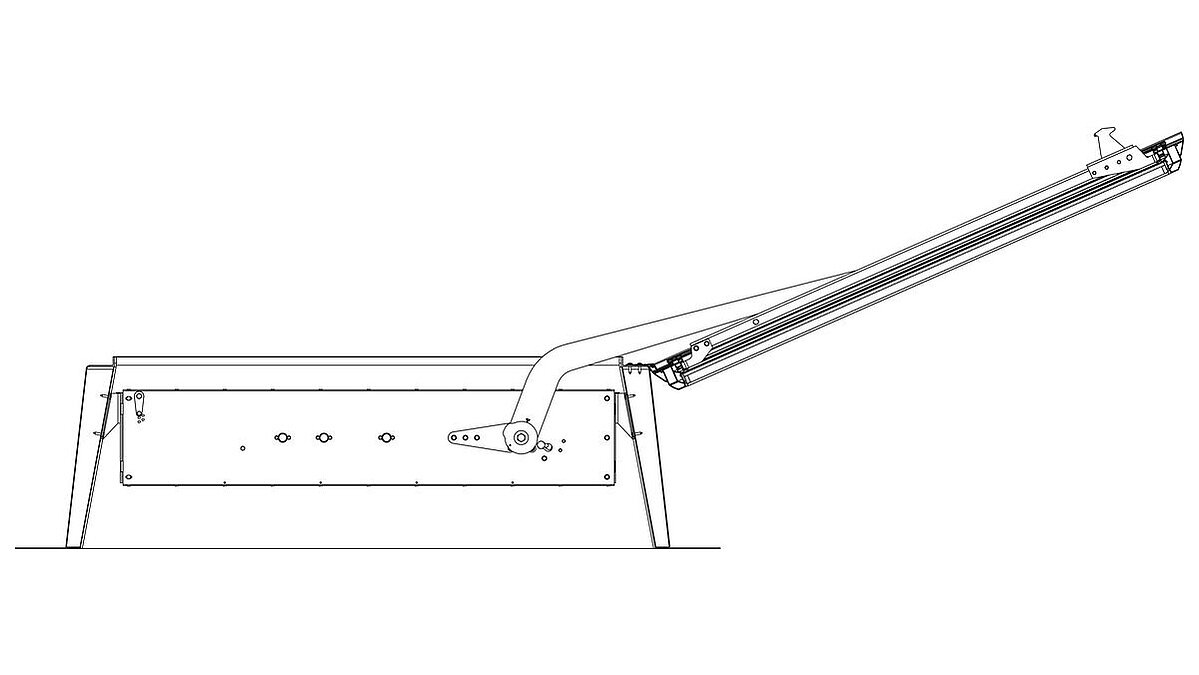

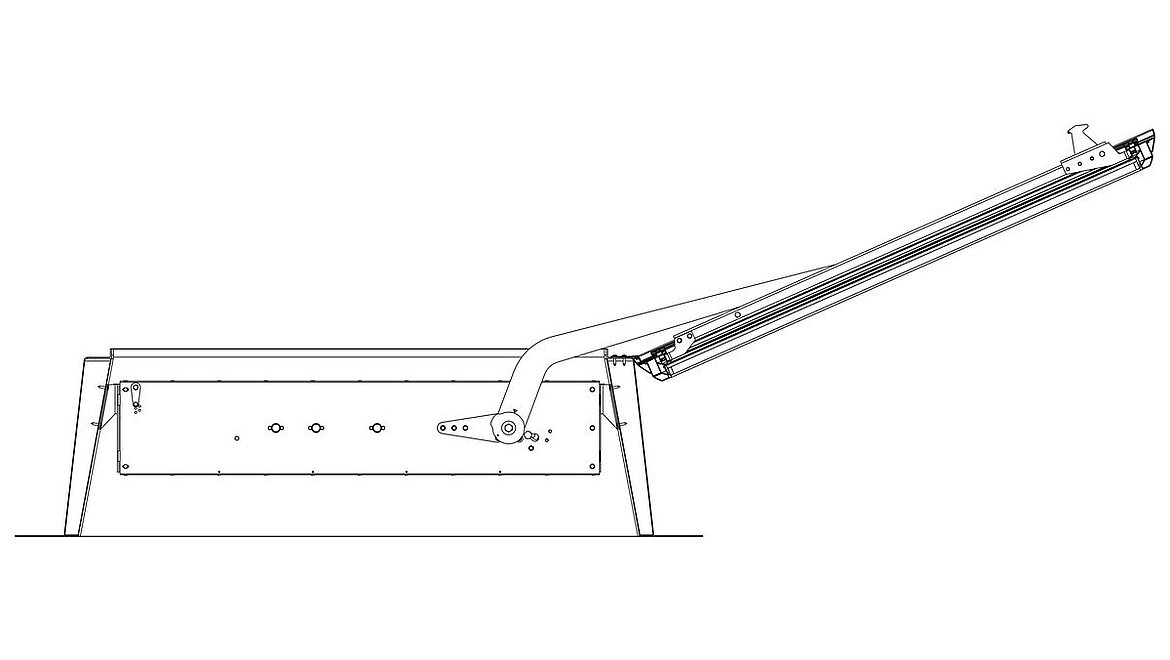

Technical details
Smoke Lift Glass Skylight F100
Cutting-edge technology
- Integration of triple thermal insulation glazing with excellent Ug-values
- Outstanding, certified air-tightness due to the new balloon double sealing system
- A fully thermally insulated upstand made of GRP; jointless and therefore 100% vapour-tight
- Very high load-bearing capacity due to optimised profiles
- UV-resistant edge bond
- Smooth transitions between the glazing and frame profiles ensure unobstructed rainwater run-off with no dirt traps
- Surrounding frame with absolutely no thermal bridges, classified as watertight in driving rain, in accordance with EN 12208 E1500 (equivalent to exposure to heavy rain and wind speed 14)
- Complies with DIN 18234 without additional measures
Energy efficiency
The Glass Skylight F100 offers complete and optimal thermal insulation in a single compact unit which is free of thermal bridges. The Uw-value of 1.45 - 1.07 W/(m²K) is calculated according to EN ISO 10077-1 for a reference element measuring 120cm x 120cm and is dependent on the type of glazing selected.

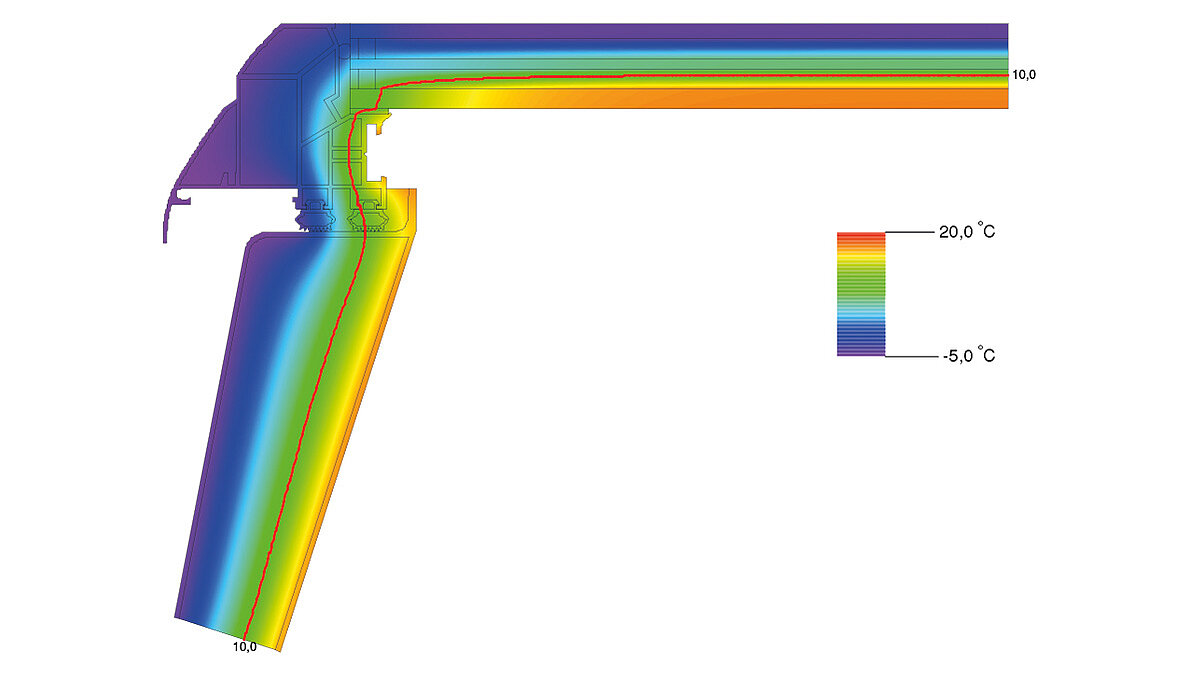

Isothermals – thermal protection made visible
Optimised isothermal lines for consistent thermal insulation zones without any weak spots provide superior thermal protection in all sections throughout the structure, presenting evidence of optimum energy efficiency. LAMILUX calls this thermal bridge-free product concept
TIP – Totally Insulated Product
